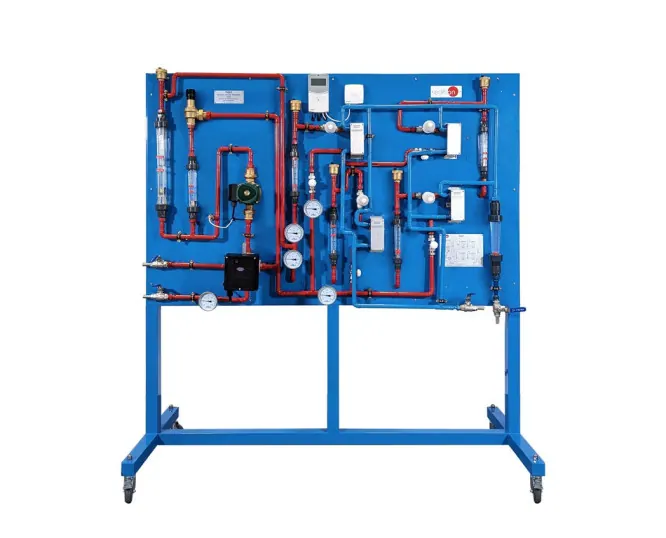

THST: Heating System Training Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Simulation of a central heating system with four radiators, each fitted with its own thermostatic valve. A circulation pump, rotameters and a four way mixing valve let students study flow distribution and the control of feed and return temperature.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Four radiators, each with a thermostatic valve set from the valve head |
| Specification | Circulation pump guarantees water flow towards the radiators |
| Specification | Rotameters measure the flow |
| Specification | Digital control device keeps the room temperature constant |
| Specification | Four way mixing valve adjusts boiler feed and return temperature |
| Specification | Differential pressure overflow valve, two cold water connections and bimetallic thermometers |
