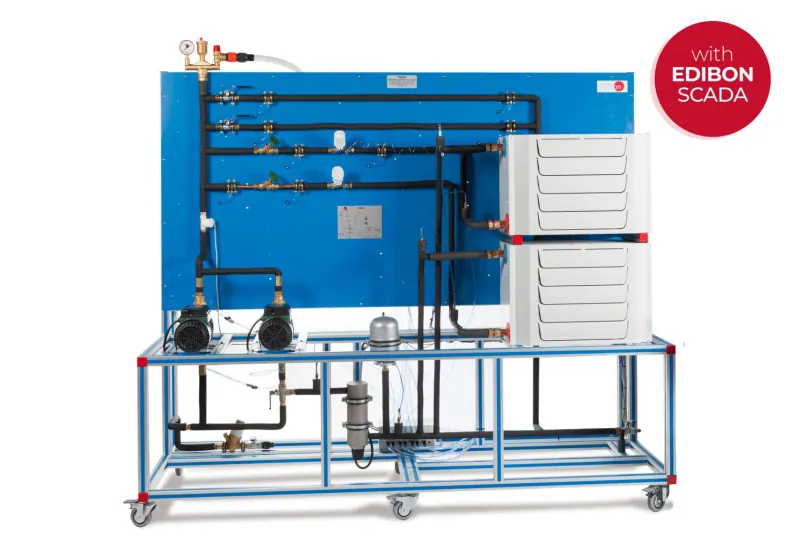

TEHSC: Computer Controlled Unit to Study the Efficiency of a Heating System
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Closed heating system built from pipes, fittings and valves of the kind used in real installations, with a safety group to DIN 4751. Differential pressure sensors across each component let students quantify pressure drops and analyse system efficiency.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Real safety group according to the DIN 4751 standard |
| Specification | Two computer controlled circulation pumps, one with adjustable speed, for comparison |
| Specification | Computer controlled heating element with two point control and adjustable hysteresis or PID control |
| Specification | Two thermostatic valves with different thermostatic heads plus an angle seat valve |
| Specification | Two convectors with computer controlled fan, one with adjustable speed |
| Specification | Water flow sensor, two pump power sensors and six temperature sensors |
