THz-Raman Integrated Systems
Brand: Coherent | Category: Scientific & Laboratory Equipment

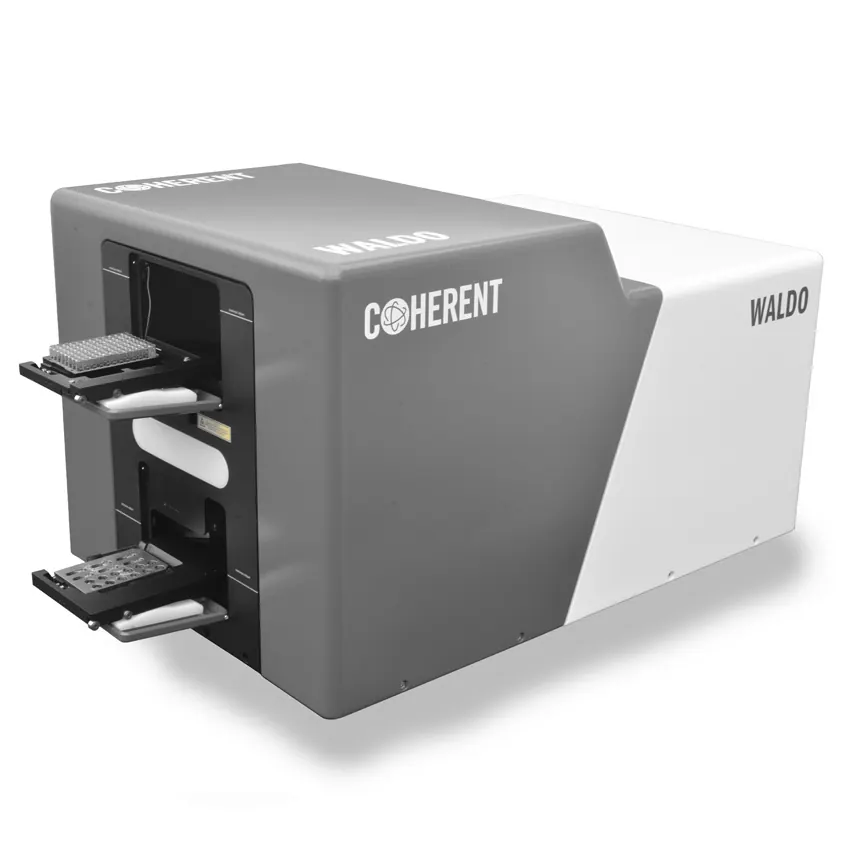

THz-Raman Integrated Systems are turnkey Raman platforms that record the low frequency and fingerprint regions in one measurement. The TR-WPS is a microplate reader with intra-well mapping and the TR-WALDO adds upright and inverted microscopy with translation stages.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength | 785 nm |
| Laser output power | up to 300 mW at sample |
| Spectrometer range at 785 nm | -300 to +2100 cm-1 |
| Stokes shift | 3000 cm-1 or greater, anti-Stokes shift less than -250 cm-1 |
| Spectrometer resolution at 785 nm | 4 to 6 cm-1 |
| Dimensions (W x D x H) | 950 x 650 x 415 mm (WPS), 950 x 650 x 570 mm (WALDO) |
