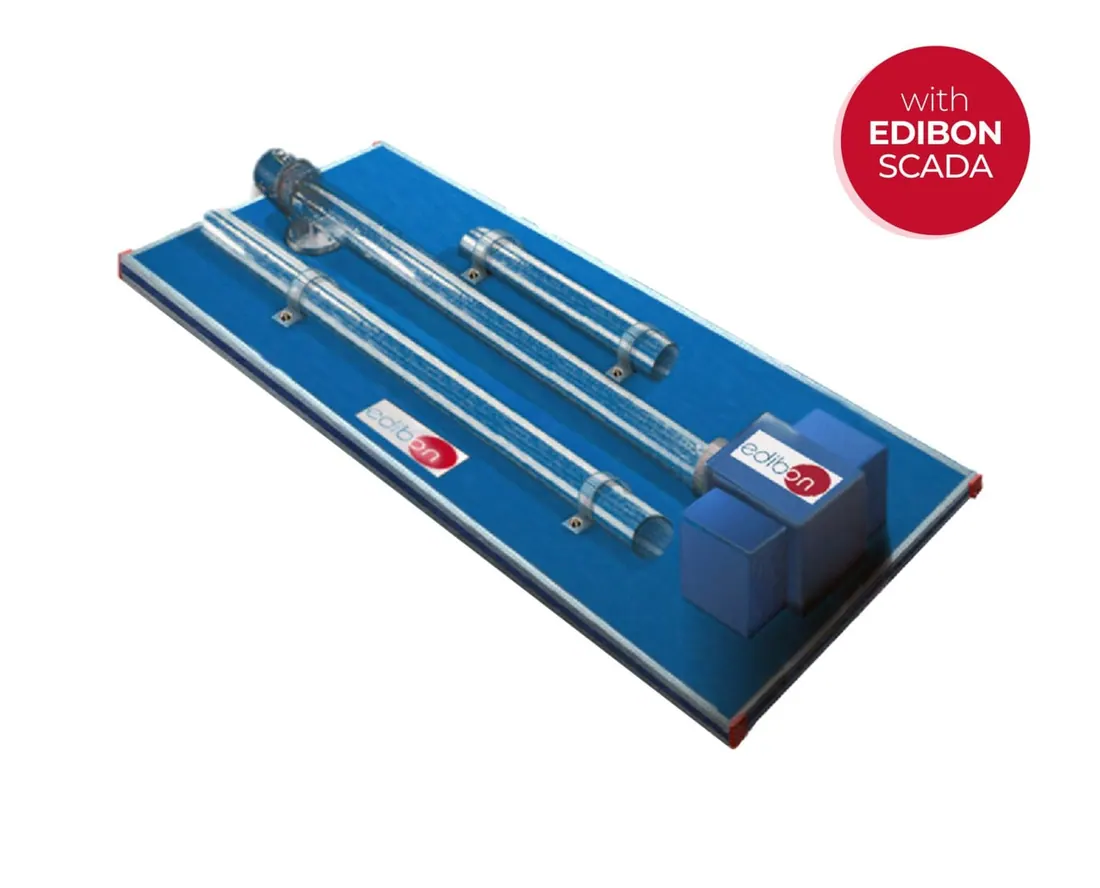

TIAC: Computer Controlled Acoustic Impedance/Acoustic Insulation Study Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
TIAC is a computer controlled impedance tube for acoustic testing of materials. The sound absorption coefficient and acoustic impedance of samples are measured over a frequency range and recorded through the data acquisition system.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1500 x 500 x 200 mm approx |
| Weight | 20 Kg approx |
| Specification | Input range (V)=±10 V. Data transfers=DMA, interrupts, programmed I/0. DMA channels=6 |
| Specification | Analog output output range (V)=±10 V. Data transfers=DMA, interrupts, programmed I/0 |
| Digital Input/Output number of channels=24 inputs/outputs. D0 or DI Sample Clock frequency | 0 to 100 MHz |
