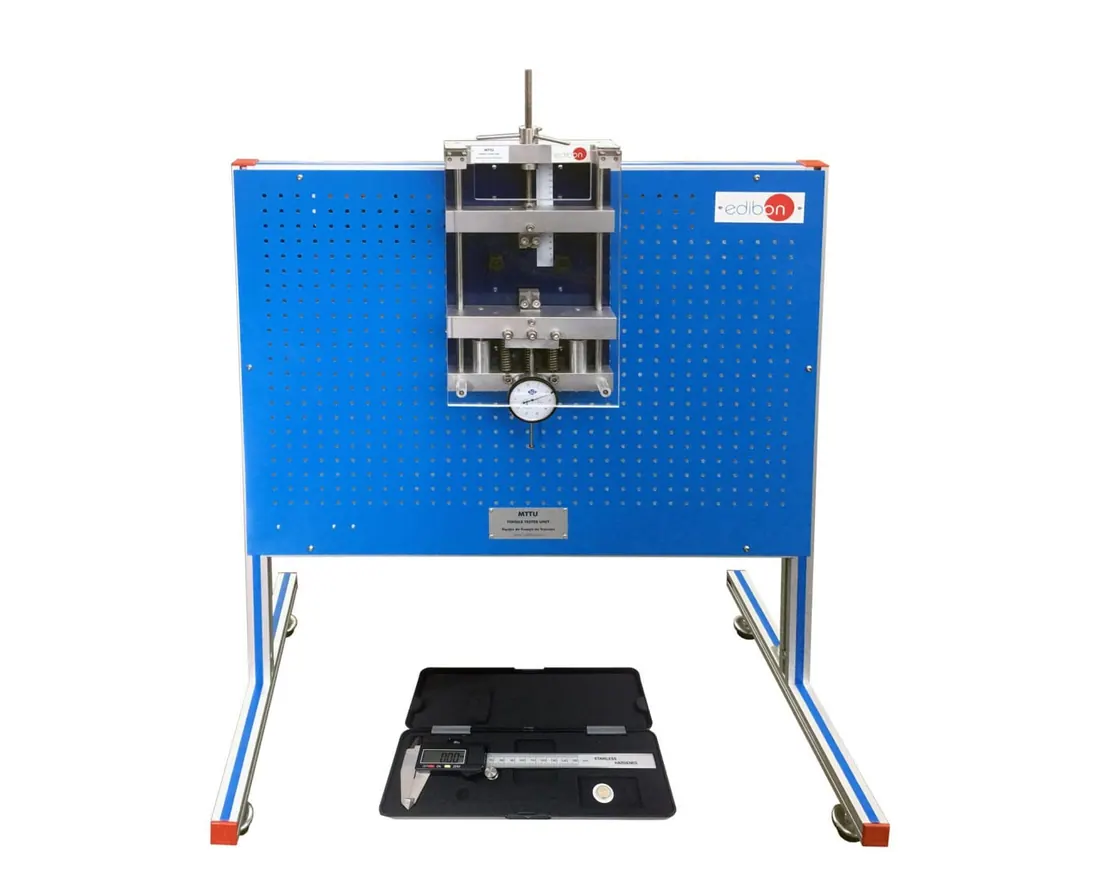

MTTU: Tensile Tester Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MTTU is a bench tensile tester for small metal and plastic specimens. Load and extension are measured as the specimen is pulled to failure, giving the stress strain curve, the yield and tensile strength and the percentage elongation.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 660 x 100 x 500 mm approx |
| Weight | 20 Kg approx |
| Structural panel of dimensions | 660 x 890 mm |
| Dial gauge, range | 0 to 20 mm; accuracy: 0.01 mm |
| Specification | Twelve specimens made of S235JR steel (2 x 2 mm) |
| Specification | Twelve specimens made of aluminum, purity 99.5 % (2 x 2 mm) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
