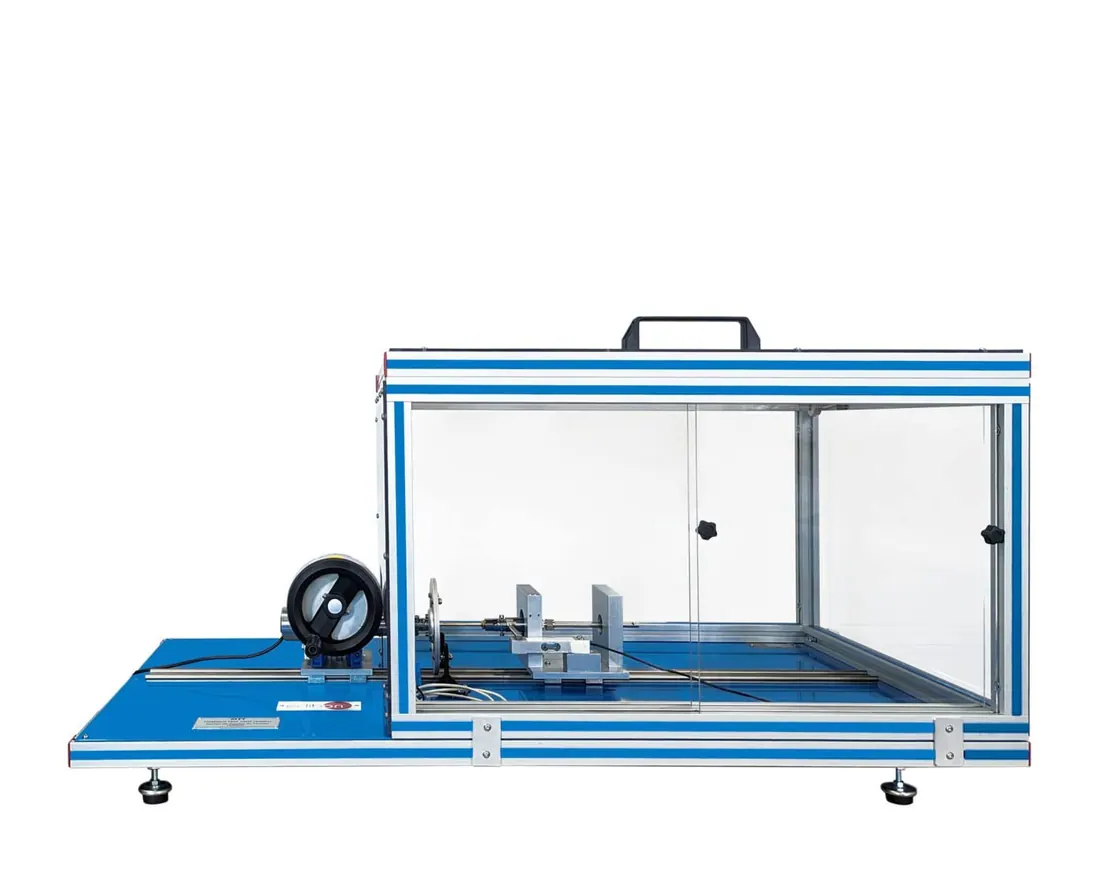

MTT: Torsion Test Unit (30Nm)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MTT is a bench torsion machine for specimens loaded up to 30 Nm of applied torque. Torque and angle of twist are recorded through the test so students can obtain the shear stress and shear strain curve and the modulus of rigidity.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1350 x 700 x 550 mm approx |
| Weight | 40 kg approx |
| Maximum moment of torsion | 30 Nm |
| Specification | Test specimens of different lengths and materials of 6 mm diameter |
| Specification | 4 steel specimens of L = 75 mm |
| Specification | 4 brass specimens of L = 75 mm |
