TIFCB: Cross Flow Heat Exchanger
Brand: EDIBON | Category: Scientific & Laboratory Equipment

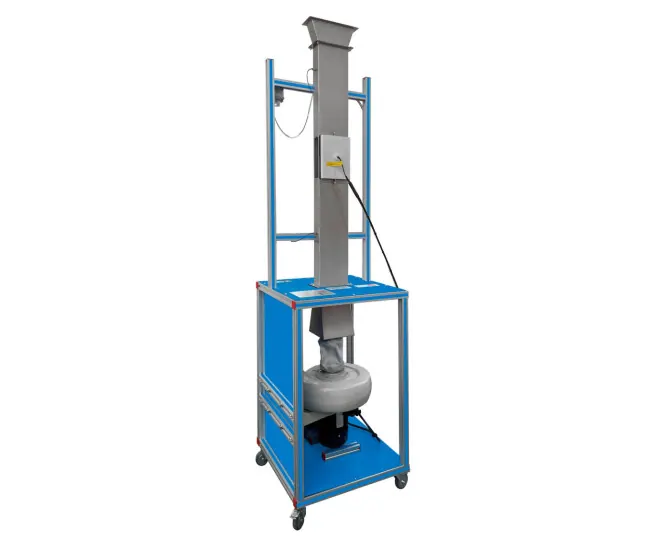

Rectangular stainless steel wind tunnel mounted over a centrifugal fan, with interchangeable exchanger plates. Students investigate convective processes in a single tube and in a pinned multi-tube exchanger and relate the Nusselt, Reynolds and Prandtl numbers.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Corrosion resistant rectangular stainless steel wind tunnel with bell shaped inlet |
| Specification | Two exchangers supplied, a pinned multi-tube exchanger and a single tube exchanger |
| Specification | Centrifugal fan with variable speed drive to control the air flow |
| Specification | Two air temperature sensors before and after the exchanger |
| Specification | Control temperature sensor in the heating element and air speed sensor in the tunnel |
| Specification | Computer controlled version available as TIFCC |
