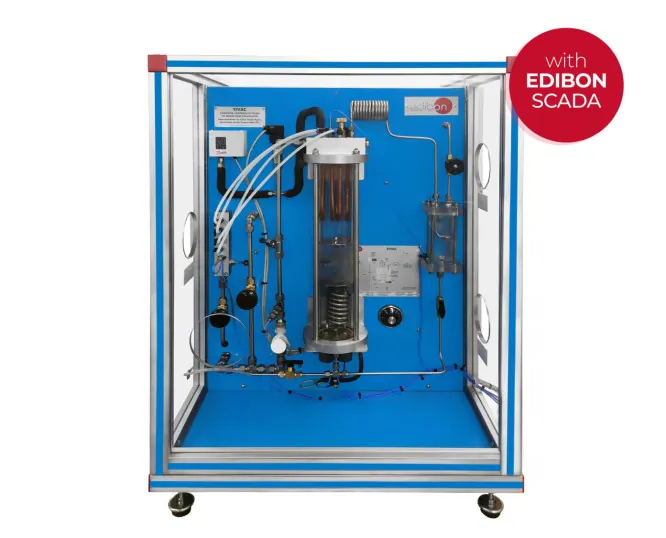

TIVAC: Computer Controlled Steam to Water Heat Exchanger
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Vertical glass steam chamber with a multi pass tube condenser, designed to study condensation in shell and tube exchangers. The number of condenser passes is changed by hand valves so the effect of heat transfer area on the overall coefficient can be measured.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Condenser formed by four U shaped copper tubes arranged in series |
| Specification | One, two, three or four pass configuration selected with manual valves |
| Specification | Vertical resistant glass steam chamber with helical heating element at the bottom |
| Specification | Water jet pump vacuum system lowers the boiling temperature and extracts air |
| Specification | Demonstrates dripping condensation, film condensation and nucleate boiling |
| Specification | Supplied with EDIBON SCADA computer control, data acquisition and data management software |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
