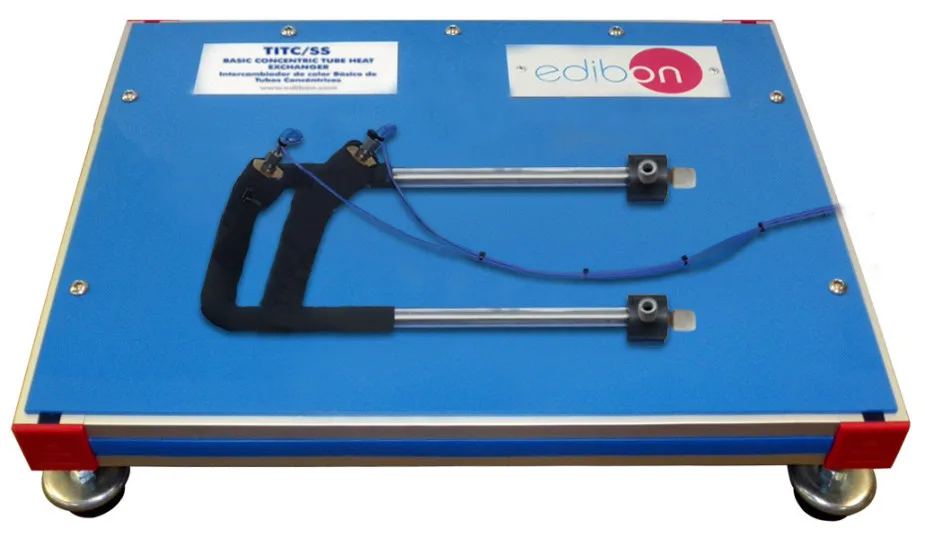

TITC/SS: Basic Concentric Tube Heat Exchanger
Brand: EDIBON | Category: Scientific & Laboratory Equipment
TITC/SS is a basic concentric tube heat exchanger unit from EDIBON's heat exchangers range. It sits alongside related units including the TIPL/SS basic plate heat exchanger and the TICC computer controlled heat exchangers training system, among other exchanger types in the family. The basic designation points to introductory laboratory use.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Heat-transfer area | 0.025 m² |
| Inner tube | Stainless steel; 12 mm outer diameter, 1 mm wall |
| Outer tube | PMMA; 20 mm outer diameter, 2 mm wall |
| Flow arrangements | Parallel and counter-current |
| Required base | TIUS/SS |
Selected data for the named module from the manufacturer brochure. Confirm the complete configuration, required base equipment, utilities and supplied accessories in the quotation. Component ratings are not whole-system operating limits. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Heat transfer experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
