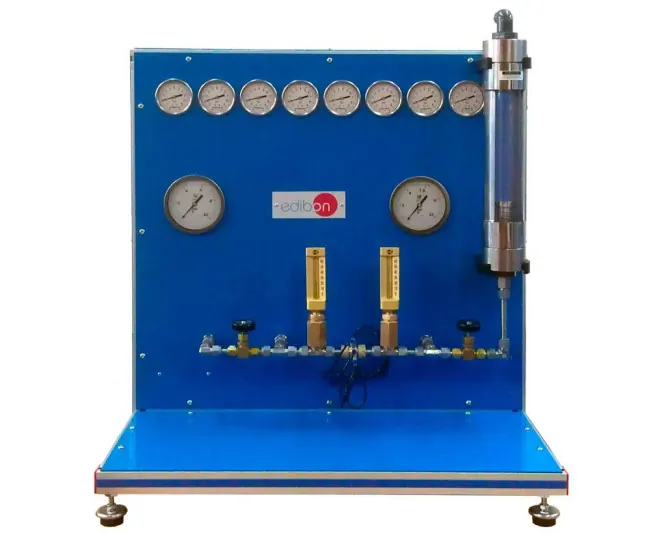

TPT: Nozzle Pressure Distribution Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Unit for investigating pressure distribution and mass flow rate in convergent and convergent divergent nozzles. Compressed air is regulated at the nozzle inlet and outlet, and each pressure tapping has its own manometer so the choking effect can be shown visually.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Convergent conical nozzle with six pressure tappings |
| Specification | Convergent divergent nozzle with five pressure tappings |
| Specification | Convergent divergent nozzle with eight pressure tappings |
| Specification | Nozzles machined in brass |
| Specification | Ten manometers, two for inlet and outlet pressure and the rest for the nozzle tappings |
| Specification | Air filter, pressure regulator, control valves, flowmeter and two thermometers |
