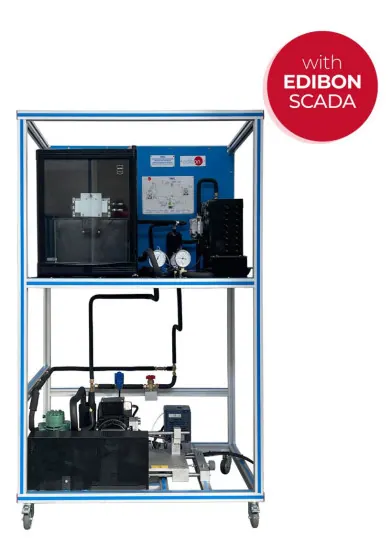

TRCC: Computer Controlled Refrigeration Unit with Open Compressor
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Compression refrigeration plant built around an open compressor driven by an electric motor through a V-belt. The motor speed is adjustable and the motor is pendulum mounted with a force sensor, so the cycle can be studied at different degrees of compression.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Open compressor driven by an electric motor through a V-belt |
| Specification | Adjustable motor speed for study at different degrees of compression |
| Specification | Pendulum suspended motor with force sensor to determine the torque |
| Specification | Air cooled condenser with fan, expansion valve and evaporator with fan |
| Specification | Evaporator in a refrigeration chamber with adjustable power heating element for variable thermal load |
| Specification | Supplied with EDIBON SCADA computer control, data acquisition and data management software |
