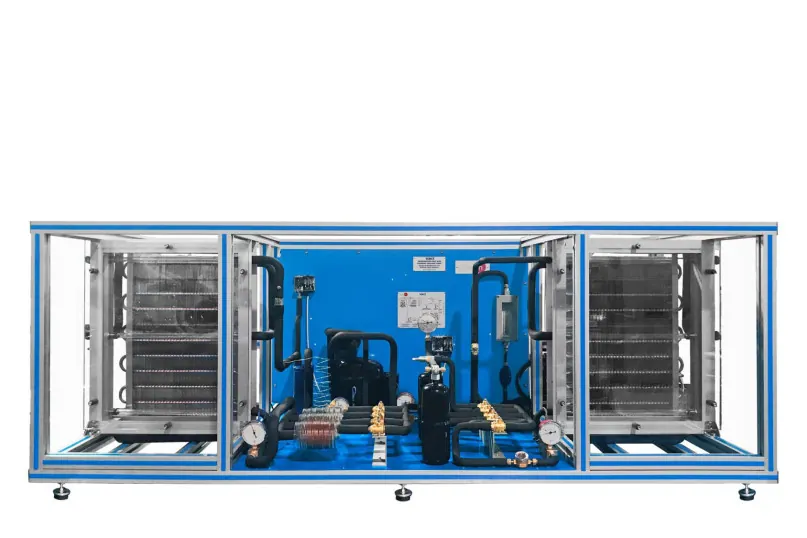

TCRCT: Refrigeration Unit with Different Capillary Tubes
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Compression refrigeration system supplied with three capillary tubes of different length plus a thermostatic expansion valve, so expansion devices can be compared. An extra receiver allows the effects of overcharging and undercharging to be studied.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Three capillary tubes of different lengths and one thermostatic expansion valve |
| Specification | Additional refrigerant storage tank for studying overfilling and underfilling |
| Specification | Finned tube evaporator and condenser with transparent tubes to view the change of state |
| Specification | Receiver allows refrigerant to be added to or removed from the circuit |
| Specification | Measurement of coolant flow, compressor power, and pressure and temperature at key points |
| Specification | Computer controlled version available as TCRCTC |
