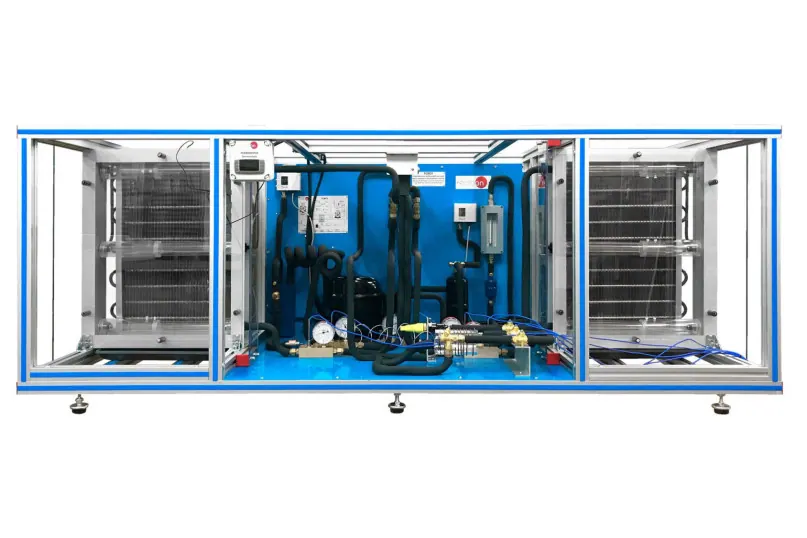

TCREV: Compression Refrigeration Unit with Different Expansion Valves
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Fully operational refrigeration circuit fitted with three different expansion devices so their behaviour can be compared. A four way reversing valve switches the plant between refrigeration and heat pump operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Manual expansion valve, thermostatic expansion valve and capillary tube |
| Specification | Four way reversing valve changes between refrigeration and heat pump cycles |
| Specification | Programmable electronic thermostat acting on a solenoid valve |
| Specification | Finned tube evaporator and condenser, each with three transparent tubes to view the change of state |
| Specification | Measurement of coolant flow, compressor power, and pressure and temperature at key points |
| Specification | Sight glass, filter, storage vessel, liquid separator, high and low pressure switches |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
