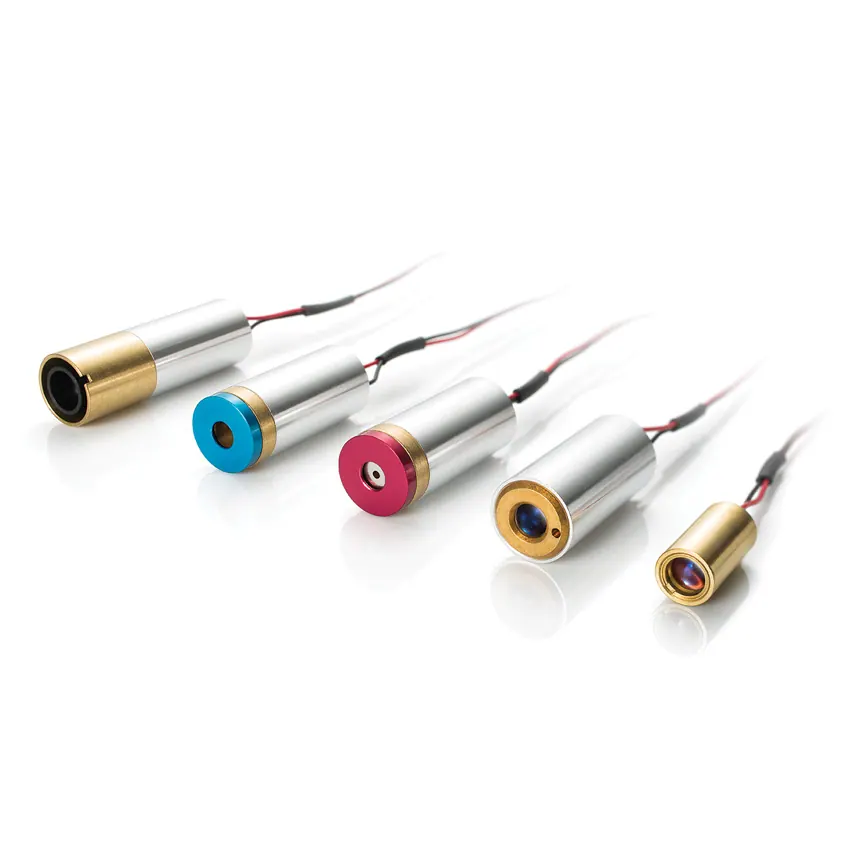

Ultra-Low Noise (ULN) and Visible Laser Modules (VLM)
Brand: Coherent | Category: Scientific & Laboratory Equipment
ULN and VLM are OEM diode laser modules for inspection, alignment and instrumentation. VLM modules are very small units with precision aligned glass optics and feedback electronics, while ULN modules include their own power supply and eliminate mode hops.
Technical Specifications
| Parameter | Value |
|---|---|
| ULN 635 nm 5 mW | 635 nm, 5 mW, circular beam, power supply included |
| ULN output noise | <0.06 % |
| VLM2-3RL | 670 nm, 2.3 mW, circular beam, CDRH conforming, 5 to 10 VDC |
| VMB2.3-4L | 635 nm, 4.2 mW, circular beam, CDRH conforming, 5 to 10 VDC |
| VLM3-5L | 670 nm, 4.2 mW, elliptical beam, CDRH conforming, 3 to 6 VDC |
| LG3 Series | 635 and 670 nm, 0.8 to 3.8 mW, 30, 40, 60 and 85 degree fan angles |
