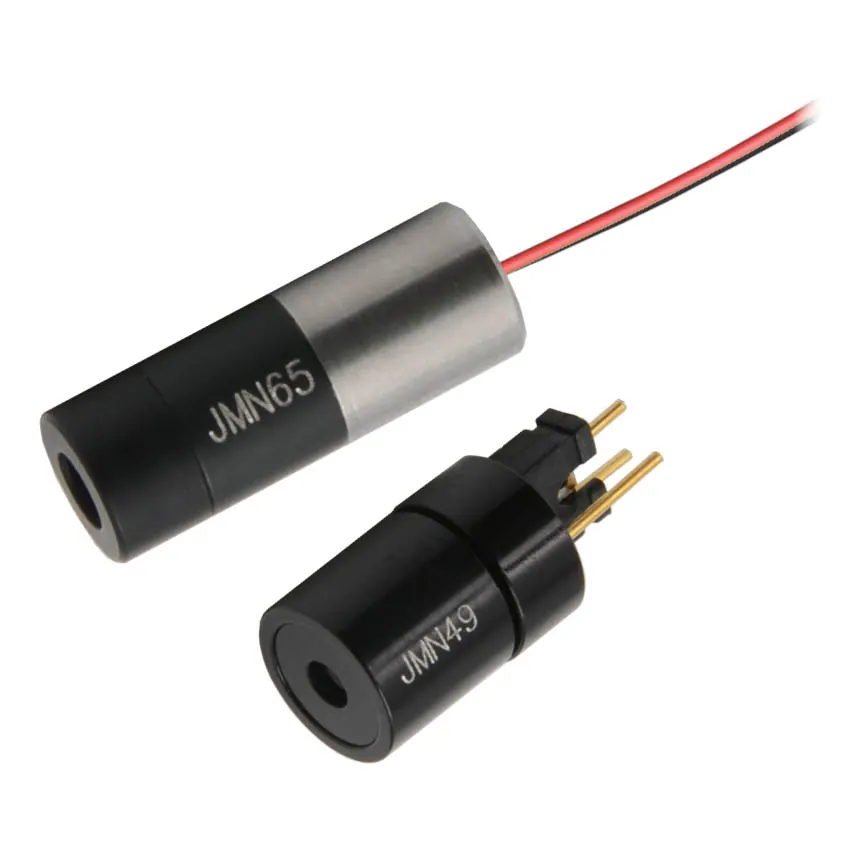

Collimated-Beam Diode Laser Modules
Brand: Coherent | Category: Scientific & Laboratory Equipment
These are ultra-compact low power diode laser modules for aiming, aligning and pointing in industrial laser, biomedical and machine vision work. Visible wavelengths include 405, 445, 488, 520, 635 and 655 nm, with auto current control and a wide operating temperature range.
Technical Specifications
| Parameter | Value |
|---|---|
| LDM-0520-C-0004-01-99-000-A | 520 nm, 4.0 mW, divergence 0.5 mrad, 4.5 x 9.0 mm |
| LDM-0520-C-0040-04-99-000-A | 529 nm, 40 mW, divergence 0.5 mrad, 7.0 x 205.0 mm |
| LDM-0635-C-0004-04-99-000-A | 635 nm, 4.2 mW, divergence 0.5 mrad, 4.15 x 11.5 mm |
| LDM-0850-C-0040-04-99-000-A | 850 nm, 40 mW, divergence 0.5 mrad, 7.0 x 25.0 mm |
| Power stability | <5 % |
| MTTF | >10,000 hours |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
