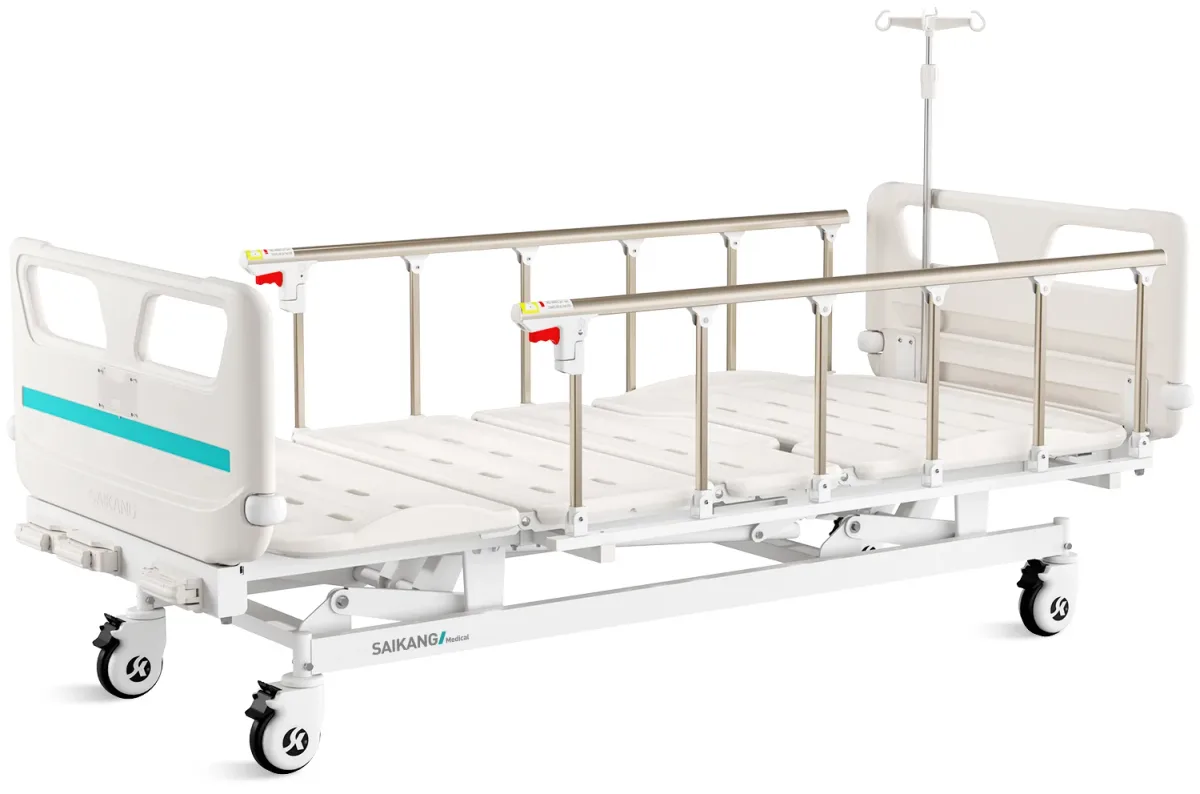

V3k Manual Bed (SK-CD1)
Brand: Saikang Medical | Category: Medical Equipment
At the heart of this bed is a robust 4-section PP platform built for long-term use and easy maintenance, with manual crank control over backrest, leg rest and bed height. An advanced linkage system expands the seating area and reduces mattress compression as the patient is raised. 5-inch TPR covered castors keep movement smooth and quiet with anti-winding protection, while the head and foot boards use eco-friendly PP from LG Chem and carry built-in buffer wheels that stop the bed marking walls. Foldable side rails, a 4-hook IV pole with multiple sockets, drainage bag holders and spring-secured platform panels complete the specification.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size (LxW) | 2130x995 mm |
| Mattress platform | 1925x900 mm |
| Safe working load | 200 kg |
| Height adjustment | 420-730mm |
| Back-rest adjustment | 0-70°(±10°) |
| Knee-rest adjustment | 0-38°(±10°) |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
