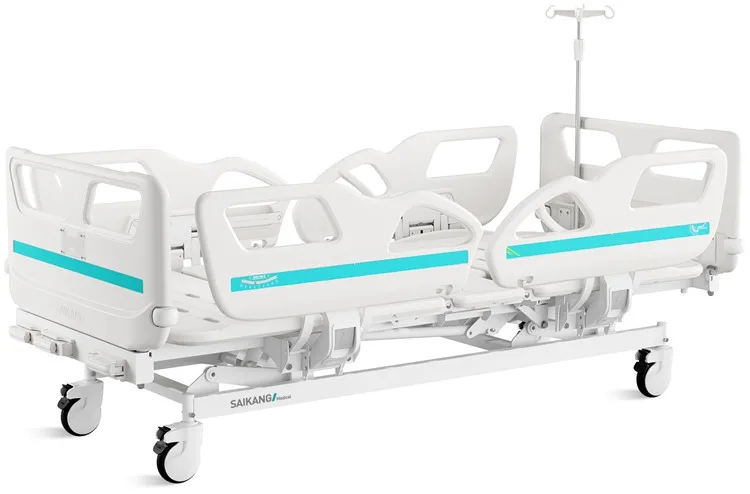

V3v5c Manual Bed (SK-CD1)
Brand: Saikang Medical | Category: Medical Equipment
The platform is an integrated PP moulding produced by advanced manufacturing technology and supplied in 4-5 sections, so each part can be installed and maintained on its own. Castors are 5" covered units whose TPR tyres show no wear after running 10 km, with an anti-winding hard shell cover formed in one piece without bolts. Dynamic testing takes the bed over obstacles 40000 times. Head and foot boards, an angle indicator and guardrails also feature among the published highlights.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size (LxW) | 2130x1025 mm |
| Mattress platform | 1925x900 mm |
| Safe working load | 200 kg |
| Height adjustment | 430-740 mm |
| Back-rest adjustment | 0-73°(±5°) |
| Knee-rest adjustment | 0-38°(±5°) |
| Angle indicator | 0-90° |
| Position line | 30° |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
