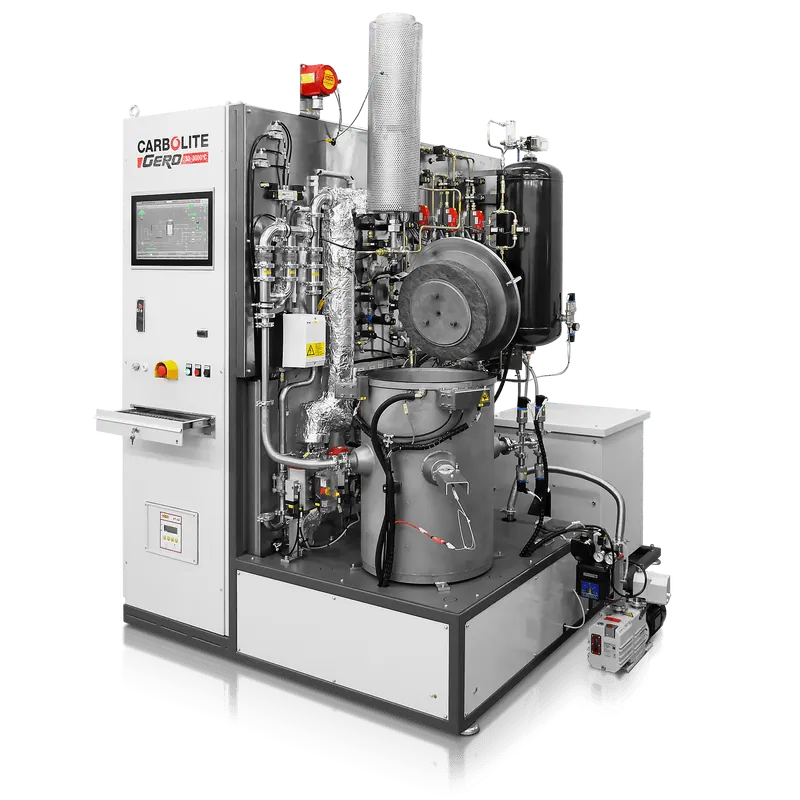

Vacuum Laboratory Furnace LHT GR
Brand: Carbolite Gero | Category: Nanotechnology
A compact graphite heated vacuum laboratory furnace for research and development. The cylindrical working space sits inside a water cooled vessel on a single mobile frame, and temperature is measured by pyrometer.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 3000 deg C under argon |
| Specification | Graphite heating elements and graphite insulation material |
| Specification | Temperature control by pyrometer, optional over-temperature thermocouple |
| Specification | Cylindrical design suited to overpressure processes up to 100 bar on request |
| Specification | Heated chamber integrated into a water cooled vessel |
| Specification | Single frame platform on casters carrying furnace and control cabinet |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
