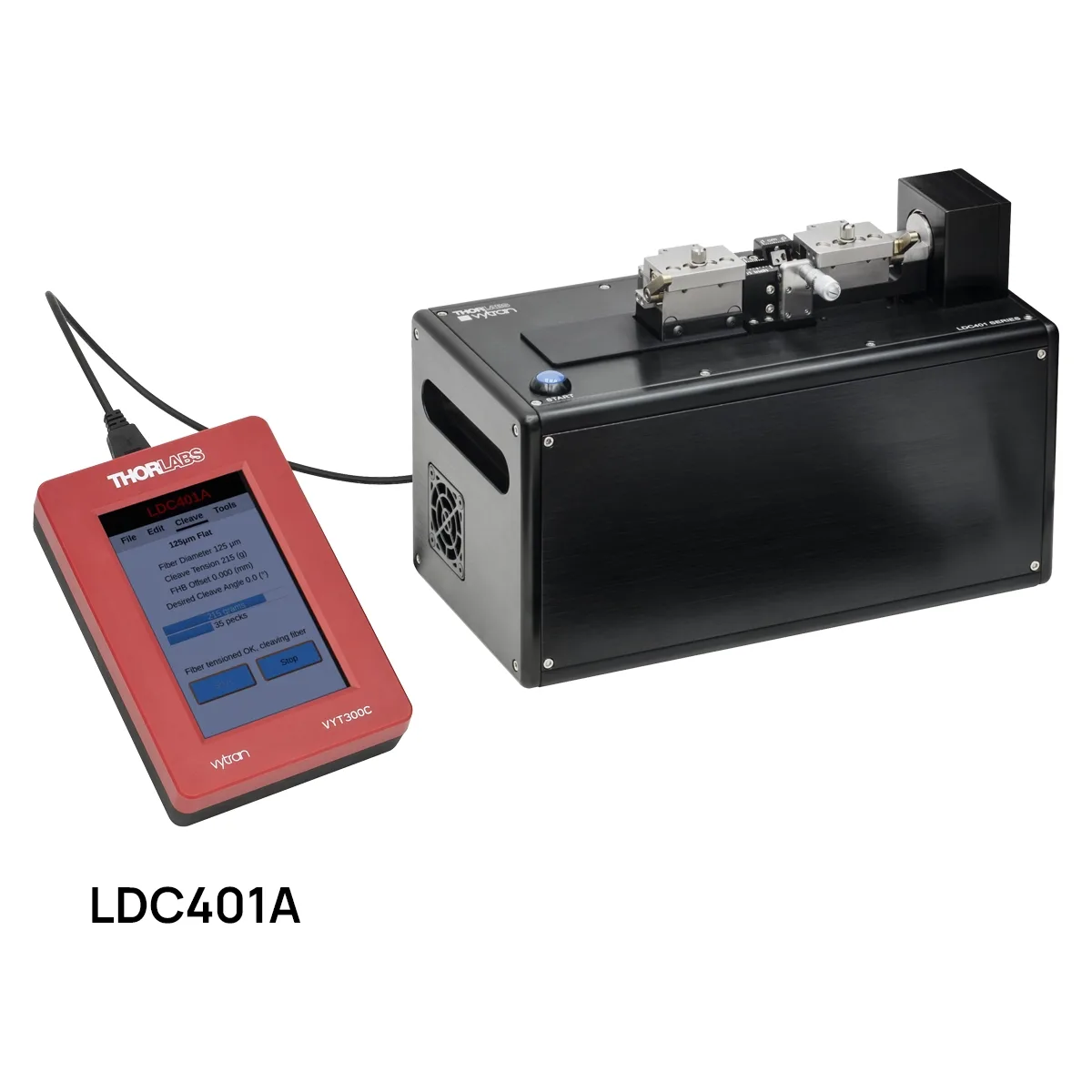

Vytran LDC401 Fiber Cleavers for Ø80 µm to Ø1.25 mm Cladding
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Programmable large diameter cleavers using a stepper controlled diamond blade and linear tension loading, with an internal vacuum pump to hold the fibre. They handle capillary tubes, photonic crystal and non-circular fibre as well as standard types.
Technical Specifications
| Parameter | Value |
|---|---|
| Accepted cladding | 80 micrometres to 1.25 mm; buffer up to 3.198 mm |
| Cleave type | flat, or flat and angled up to 15 degrees on the LDC401A |
| Cleave tolerance | plus or minus 0.5 degrees flat, plus or minus 1.0 degrees angled |
| Maximum programmable tension | 63.7 N (14.3 lbs) |
| Scribe | diamond blade, stepper motor controlled, 5000 uses over 9 positions |
| Rotation stage resolution | 0.1 degrees on the LDC401A |
