Vytran CAC400 Compact Fiber Cleaver
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
An automated tension and scribe cleaver for cladding diameters from 60 to 600 micrometres, handling single mode, multimode, polarisation maintaining, photonic crystal and soft glass fibre. The CAC400A version also produces angled cleaves.
Plan your specification
Specify the CAC400 cleave and fibre-holding arrangement
CAC400 is the flat-cleaving configuration; CAC400A adds angled cleaving. Select the model, V-groove clip and holder inserts together.
- Cleave requirement
- State flat or angled ends, fibre material and geometry. Ask the supplier to confirm suitability and identify the offered model explicitly.
- Cladding, coating and holders

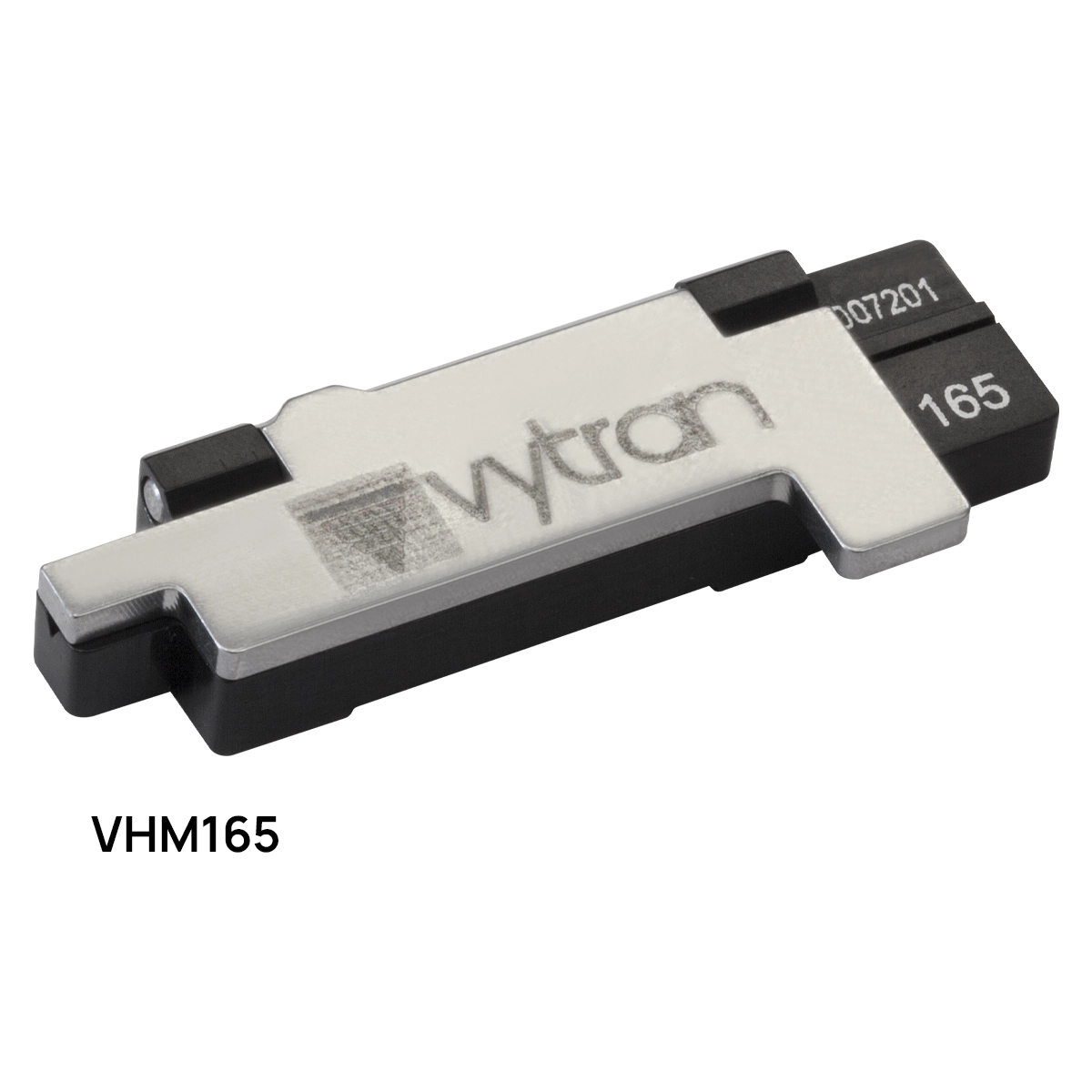

- Provide both diameters and the required cleave length. The manufacturer's basic setup requires a separate fibre clip and inserts; list these with the cleaver.
- Transfer and maintenance
- Identify the destination splicer or assembly fixture. Confirm handling compatibility and request the applicable replacement blade, maintenance instructions and any inspection accessories.
Product documentation
Compare fibre splicers, cleavers and acceptance requirements
Technical Specifications
| Parameter | Value |
|---|---|
| Cleave angle | 0 degrees (CAC400) or 0 to 15 degrees (CAC400A) |
| Cleave angle accuracy | plus or minus 1.0 degrees |
| Fibre cladding | 60 micrometres to 600 micrometres |
| Fibre buffer or coating | 67 micrometres to 1200 micrometres |
| Maximum axial tension | 21.6 N (4.9 lbs) |
| Dimensions | 235.0 mm x 127.0 mm x 119.4 mm, weight 2.0 kg |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Fibre part numbers, cladding and coating diameters
- Flat or angled cleave requirement and required length
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
