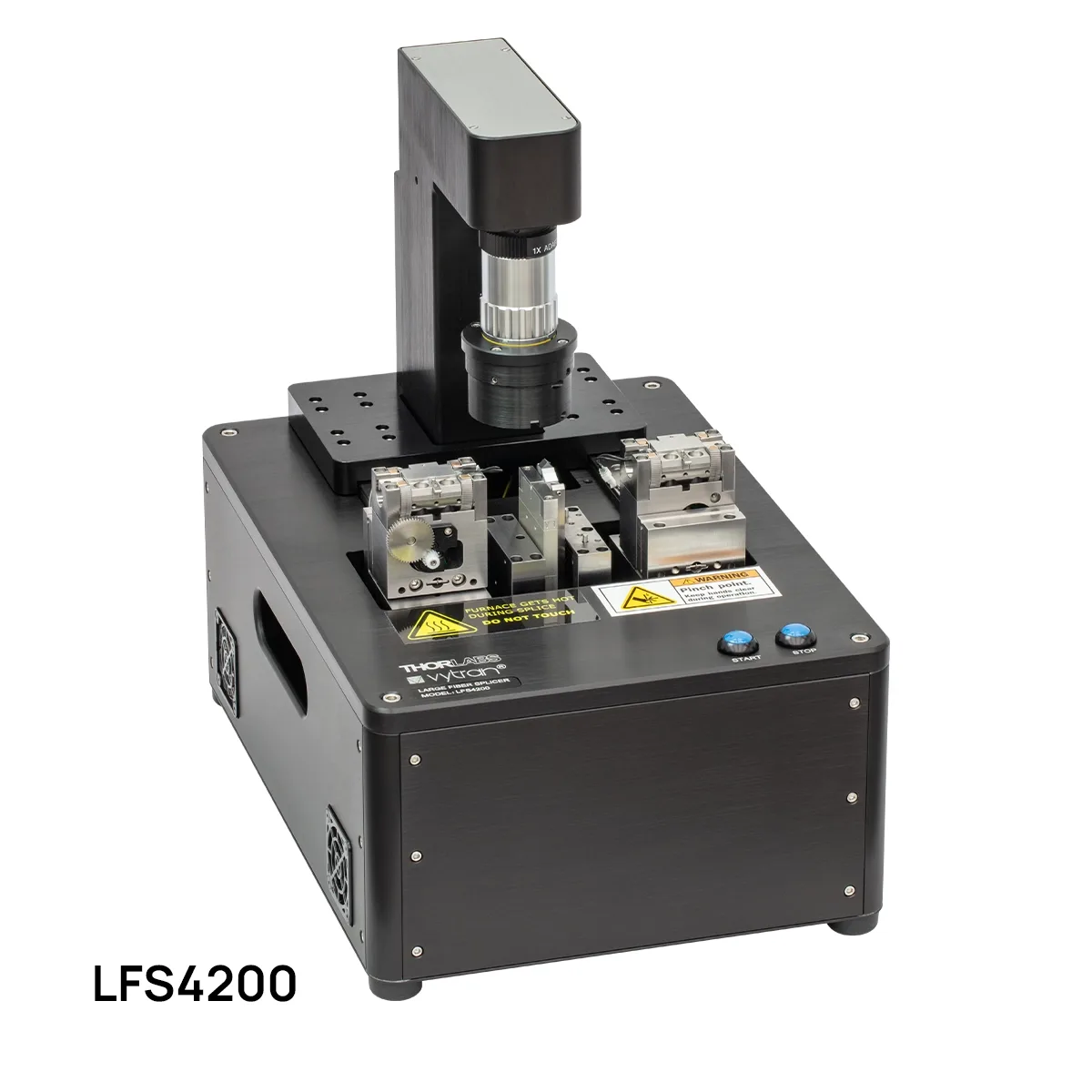

Vytran LFS Series Filament Fusion Splicers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Filament fusion splicers for standard, large diameter, specialty and soft glass fibre, using a resistive filament rather than an arc. True Core Imaging aligns the fibres and the wide thermal range also allows thermally expanded core mode field adapters to be made.
Plan your specification
Name the fibre pair and the required LFS configuration
The LFS4100 and LFS4200 serve different fibre applications. Ask for the exact model and accessory set after the manufacturer has reviewed your fibre materials and geometry.
- Glass material and alignment
- Provide both fibre datasheets, including glass composition, geometry and any polarisation-axis requirement. Thorlabs identifies LFS4200 for soft-glass work; confirm suitability for the actual pair.
- Complete operating arrangement
- Specify the proposed filament, holders and viewing arrangement. Request the required inert-gas, electrical and workspace details for the offered system.
- Representative sample evidence
- Agree the sample joints, optical and mechanical evaluation, recipe records and user familiarisation required. Separate standard equipment from application-development work.
Product documentation
Technical Specifications
| Parameter | Value |
|---|---|
| Fibre cladding diameter | up to 1.25 mm |
| Maximum filament temperature | 3000 degrees C (LFS4100), 1000 degrees C (LFS4200) |
| Maximum filament power | 400 W (LFS4100), 50 W (LFS4200) |
| Typical splice loss | 0.02 dB; typical splice strength 250 kpsi or better |
| X-Y fibre positioning resolution | 0.02 micrometres via stepper motor |
| Specification | Graphite, iridium and tungsten filament assemblies available |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Fibre manufacturer and part numbers on both sides of each joint
- Glass material, geometry, coating and operating wavelength
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
