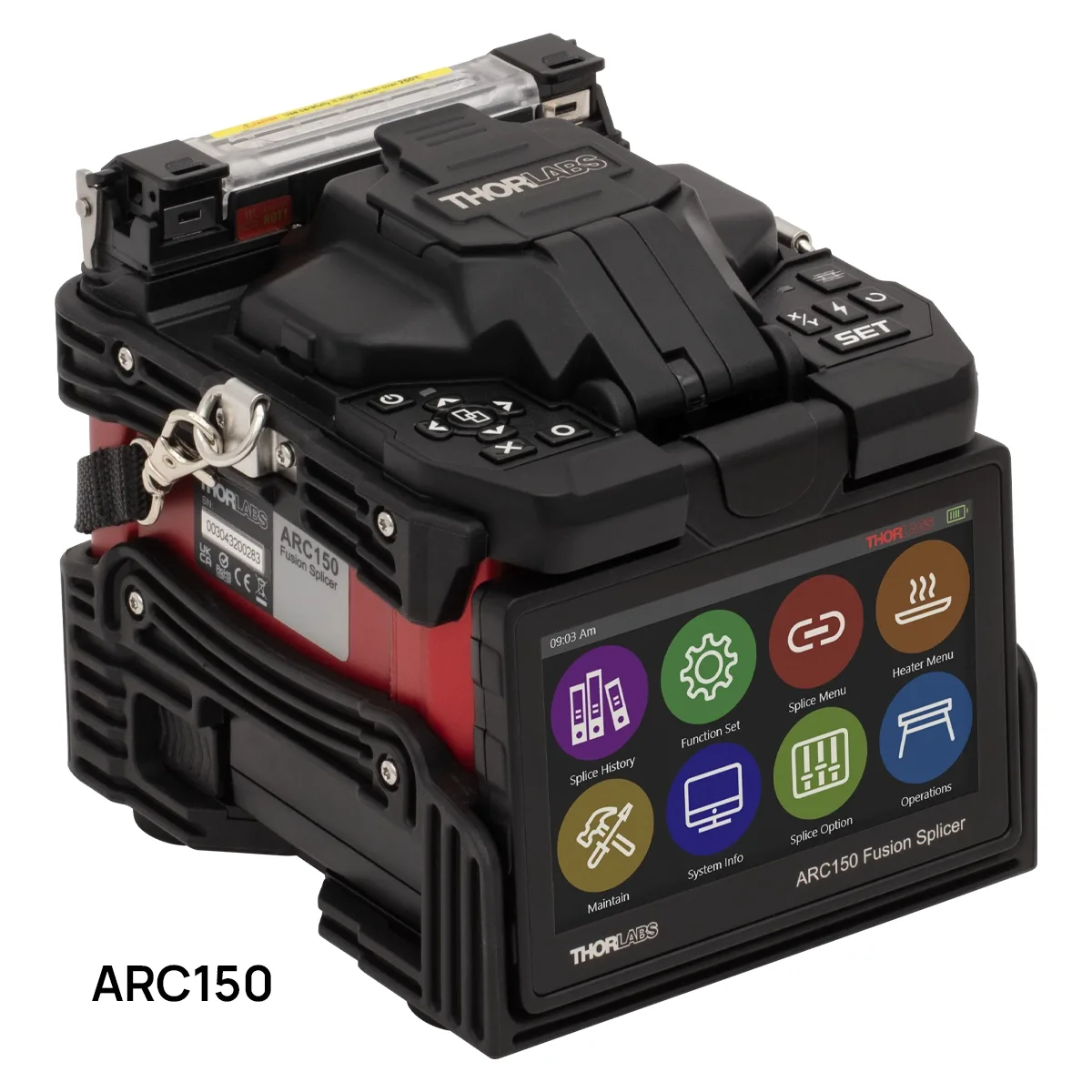

ARC150 Portable Arc Fusion Splicer Kit
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A field portable arc fusion splicer with automated cleaved fibre inspection, alignment and splicing, supplied with manual cleavers and transfer clips. The removable battery and carrying case make it usable away from a bench.
Technical Specifications
| Parameter | Value |
|---|---|
| Compatible fibre cladding | 80 to 150 micrometres |
| Typical splice loss | 0.02 dB single mode, 0.01 dB multimode |
| Return loss | 60 dB or better |
| Splicing time | 6 to 9 seconds in single mode fast mode |
| Display | 5 inch colour touchscreen, 800 x 480 pixels |
| Specification | More than 250 splice and heat cycles per battery charge; electrode life 3000 discharges |
