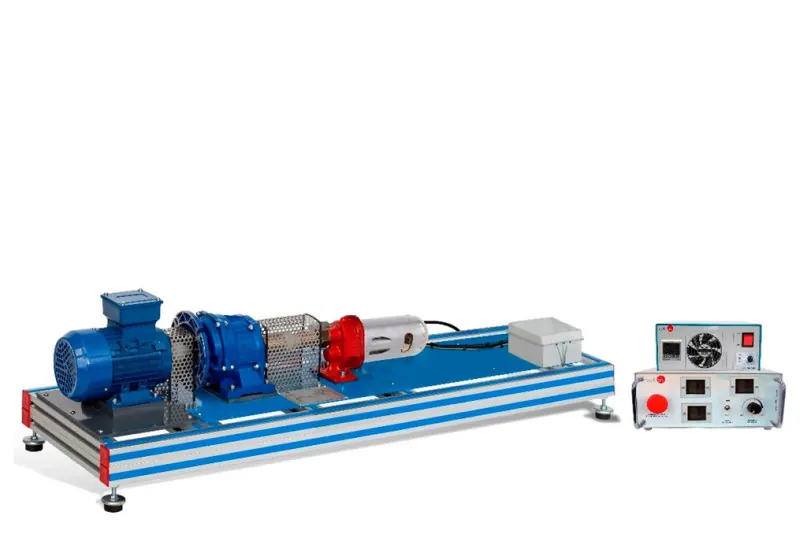

WEDTA: Wind Energy Drive Train Analysis Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Test unit for measurements on a wind energy drive train, from rotor simulation through gearing to the generator. Torque and speed sensors on both the drive and generator sides give the data needed to assess drive train performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Drive train with a spur gear and a DC generator |
| Specification | Motor with adjustable revolutions simulates a wind turbine rotor |
| Specification | Simulation of typical torque characteristics |
| Specification | DC generator with connections for the loads and an adjustable load displaying current or voltage |
| Specification | Sensors for generator revolutions and for torque on the drive and generator sides |
| Specification | Measurement amplifier with digital displays and analogue outputs for external recording |
