WiRE Correlate module
Brand: Renishaw | Category: Nanotechnology

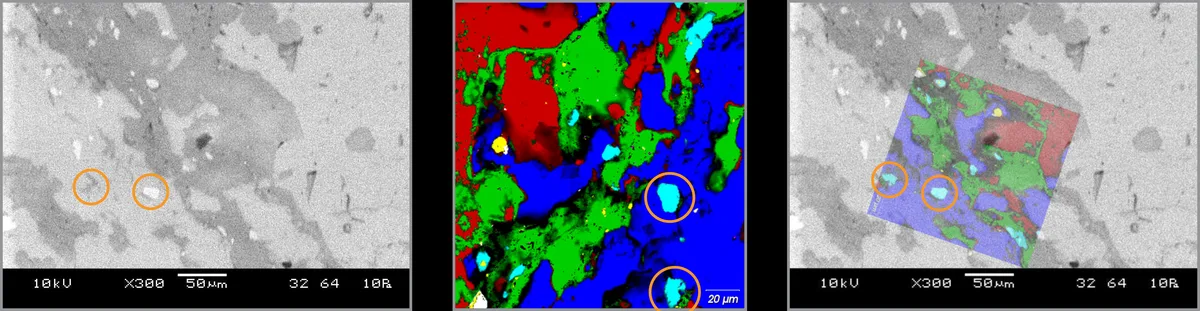

Correlate lets Raman results be compared against images from many other microscopy systems, among them scanning electron microscopy (SEM), fluorescence, atomic force microscopy (AFM), infra-red and optical microscopes. You record the coordinates of three or more reference points and data acquisition points on the sample, and the module then guides you back to the same regions of interest once the sample has been transferred between microscopes. A Coordinate Manager imports and transforms coordinates from commonly used microscopy systems, while an Image Alignment Tool gives translation, rotation, sizing and aspect ratio control for overlay at variable transparency. Batch measurements automate the same Raman measurement at different positions on a sample.
