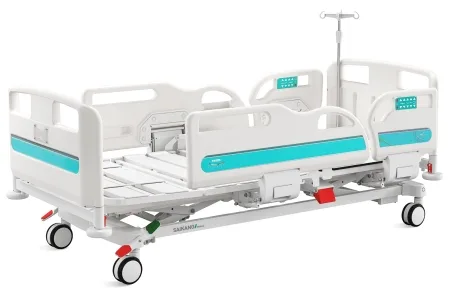

Y8y8t Electric ICU Bed (SKD-C)
Brand: Saikang Medical | Category: Medical Equipment
The Y8y8t adds an X-ray transparent phenolic resin back platform and both electric and manual CPR to the Y8y series, and its control system locks automatically after 3 minutes. Fifth and sixth side rails, a weighing system and a 200mm bed extension are part of the standard build. It follows EN60601 and carries a one button emergency stop that halts all movement.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size (LxW) | 2150x1060 mm |
| Mattress platform | 1925x880 mm |
| Safe working load | 250 kg |
| Height adjustment | 390-840 mm |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-33°(±10°) |
| Reverse trendelenburg | 0-17°(±2°) |
| Trendelenburg | 0-17°(±2°) |
| Angle indicator | 0-90° |
| Auto-regression | 70+40 mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
