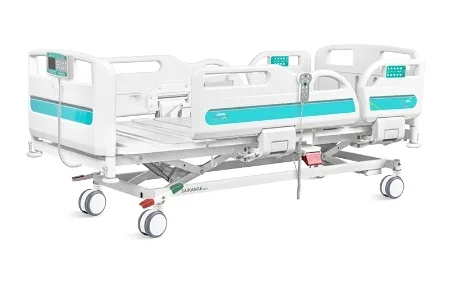

Y8y8c Electric ICU Bed (SKD-CV)
Brand: Saikang Medical | Category: Medical Equipment
Built to the EN60601 safety standard, the Y8y8c runs at under 50dB with a movement lifetime of 20,000 cycles, and a one button emergency stop halts every movement at once. PP Oasis extra height side rails carry the nurse control panel and include a plastic socket for a phone or glasses. The removable, washable PP bed platform, 113mm wall bumper wheels and a three grade central locking pedal complete the ward specification.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size(LxW) | 2130x1050 mm |
| Mattress platform | 1925×880 mm |
| Safe working load | 250 kg |
| Height adjustment | 360-780 mm |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-35°(±10°) |
| Reverse trendelenburg | 0-16°(±2°) |
| Trendelenburg | 0-16°(±2°) |
| Angle indicator | 0-90° |
| Auto-regression | 70+40 mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
