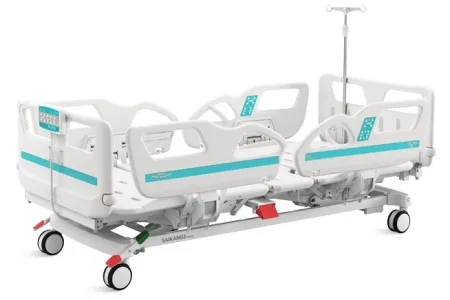

V8v Electric ICU Bed (SKD-C)
Brand: Saikang Medical | Category: Medical Equipment
This V8v configuration sits on 5 inch double side Secure castors with central locking and travels between 400mm and 850mm in height, which distinguishes it from the 6 inch castor build. A one button stop guards against maloperation and the manual CPR gives a quick release of the back part. PP bed ends are plug in type with a safe lock, and the side rails carry an integrated control panel.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size (LxW) | 2085x1025mm±10mm |
| Mattress platform | 1925x900mm±10mm |
| Safe working load | 250kg |
| Height adjustment | 400-850mm±10mm |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-28°(±10°) |
| Reverse trendelenburg | 0-17°(±2°) |
| Trendelenburg | 0-17°(±2°) |
| Angle indicator | 0-90° |
| Auto-regression | 67+47mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
