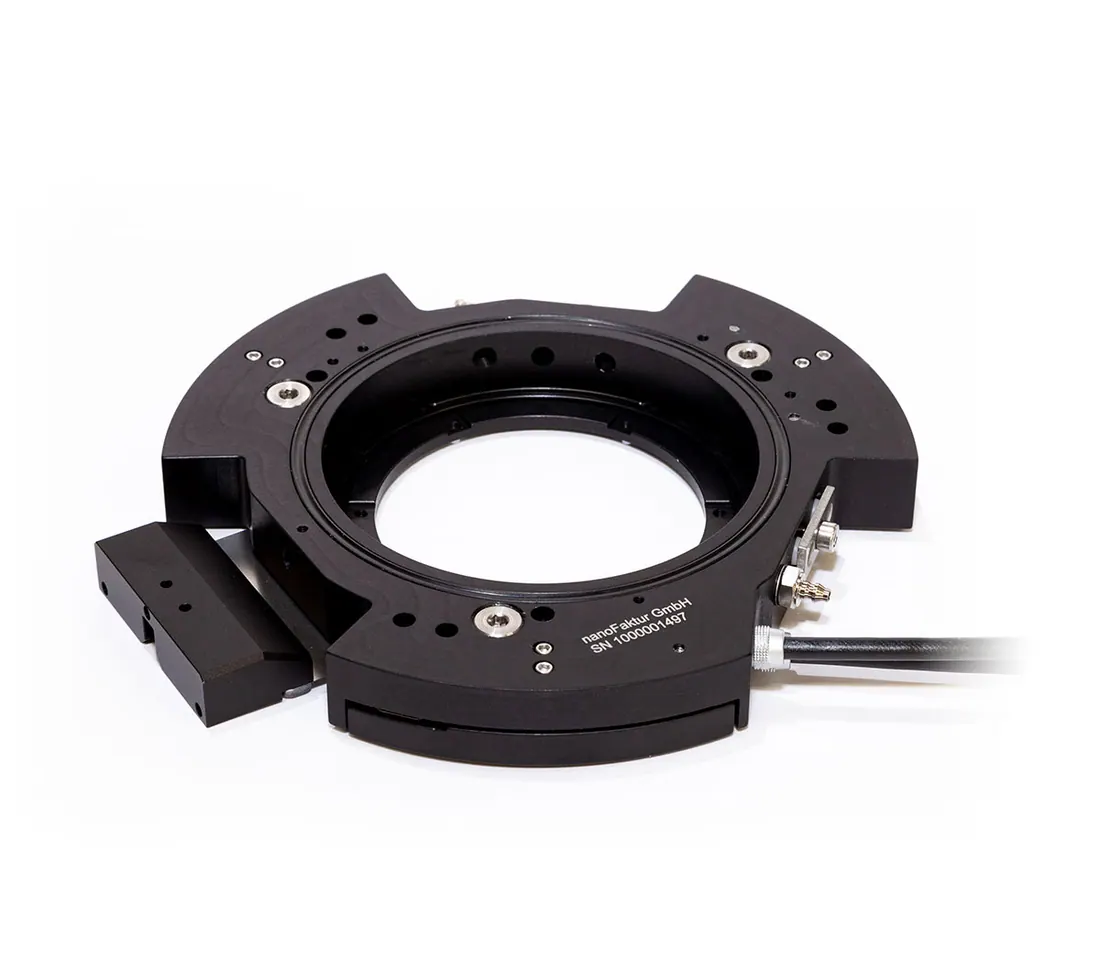

150 um Z Petri Dish Holder
Brand: Nanosurf | Category: Nanotechnology
A Petri dish holder with a 150 um z actuator, used for long range force spectroscopy on cells and tissue in liquid. Dishes are held by magnetic clamping and the holder can be heated to 60 degrees C when paired with the CH1 temperature controller.
Technical Specifications
| Parameter | Value |
|---|---|
| Z-range | 150 um |
| Temperature range | ambient to 60 degrees C |
| Compatible Petri dishes | 35 mm and 50 mm diameter |
| Dimensions | 170 mm diameter x 16 mm |
| Weight | 0.4 kg |
| Compatibility | DriveAFM, FlexAFM, CoreAFM |
