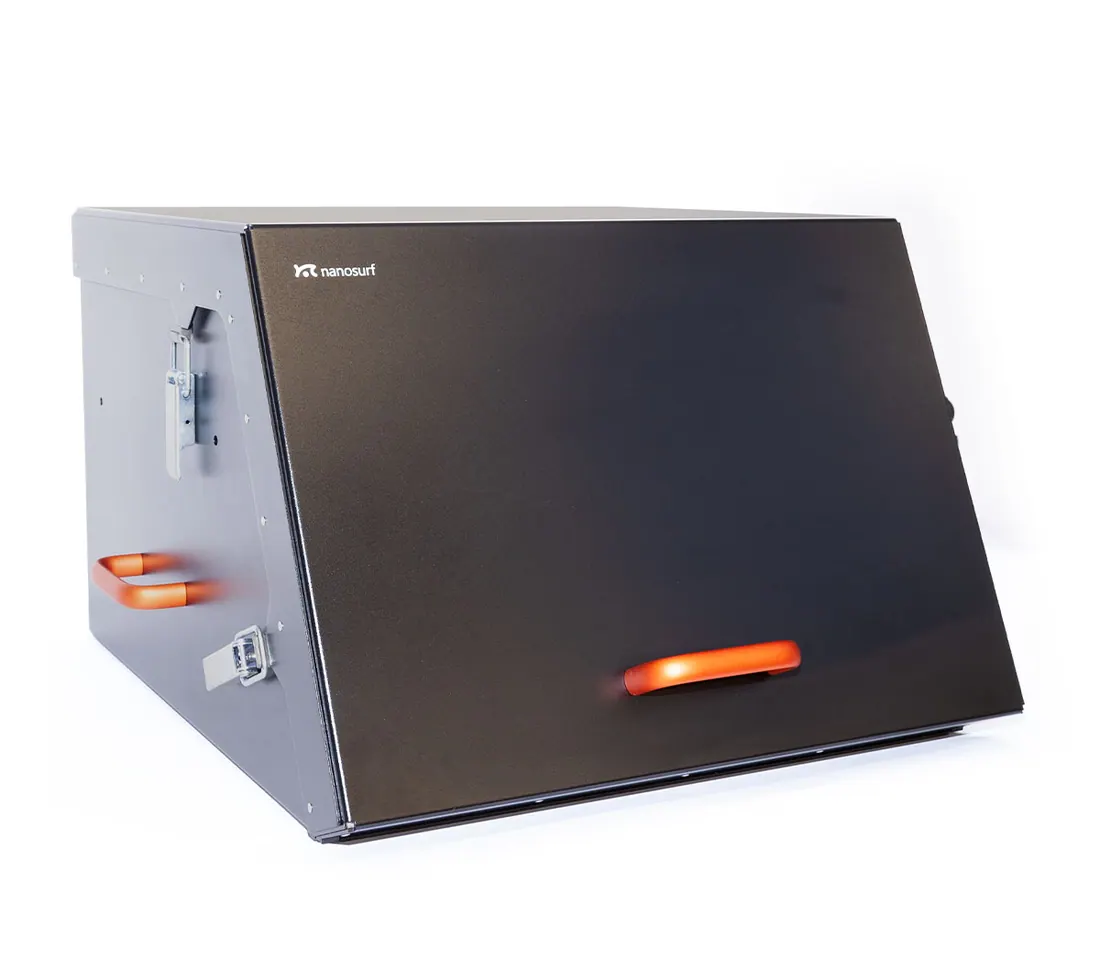

Acoustic Enclosure AE350
Brand: Nanosurf | Category: Nanotechnology
A compact acoustic enclosure for the CoreAFM or for an Isostage 300 based FlexAFM or DriveAFM. A multilayer acoustic isolation sandwich and an acoustically isolating cable feed-through cut the airborne noise that reaches the instrument during a scan.
Technical Specifications
| Parameter | Value |
|---|---|
| Sound suppression | greater than 30 dB above 160 Hz |
| Outer dimensions | 660 x 430 mm closed, 960 mm open, x 700 mm |
| Inner dimensions | 388 x 345 x 355 mm |
| Weight | about 48.5 kg |
| Suggested table | Rigid Steel Table 750 mm x 750 mm |
| Compatibility | CoreAFM, Isostage 300 based FlexAFM or DriveAFM |
