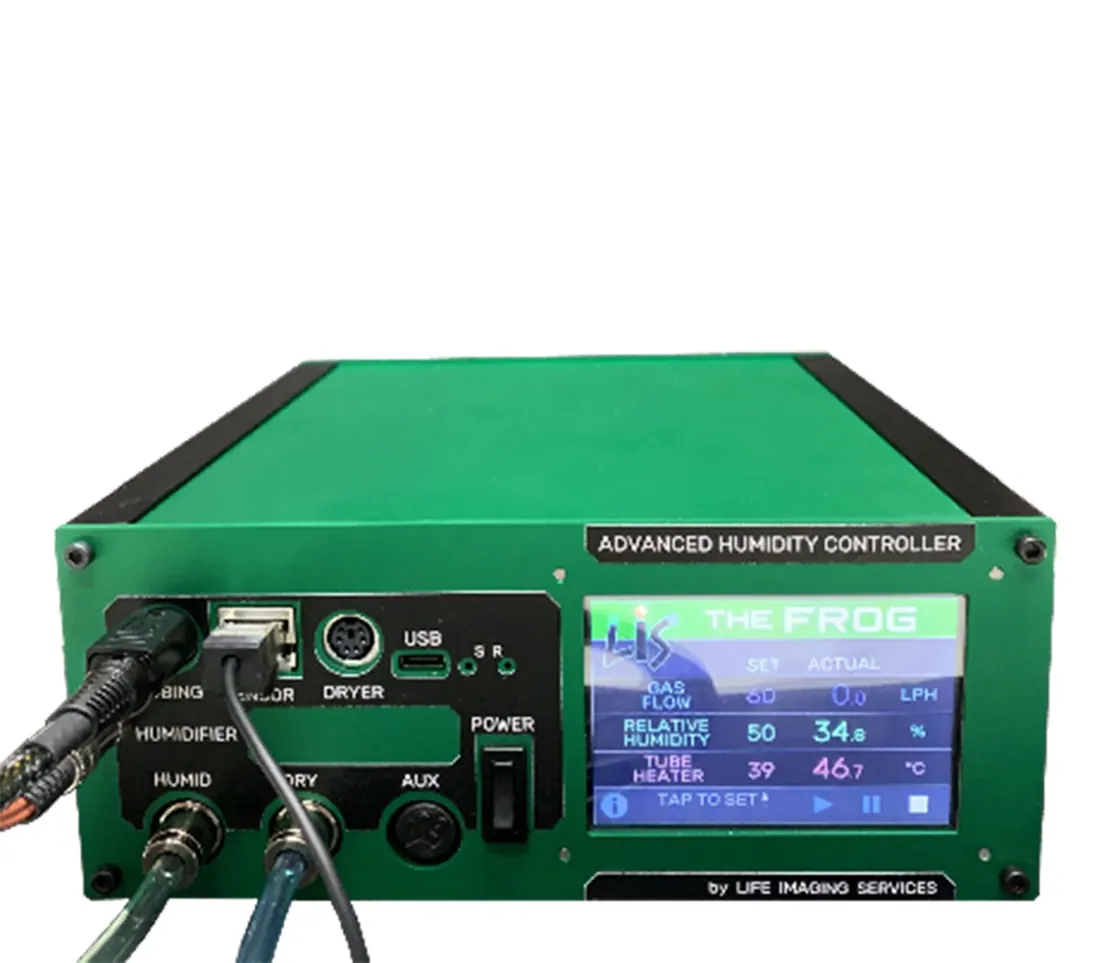

Advanced Humidifier
Brand: Nanosurf | Category: Nanotechnology
A water column with active flow rate and humidity control for measurements that need a set relative humidity. Humidified air is mixed with dry air to hold the target value, and the tubing feeding the experiment is heated to stop condensation forming.
Technical Specifications
| Parameter | Value |
|---|---|
| Flow rate | 1 to 120 l/h |
| Humidity | ambient to 96 per cent, actively controlled |
| Tubing temperature | ambient to 60 degrees C |
| Weight | 6.7 kg |
| Compatibility | DriveAFM, FlexAFM, CoreAFM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Accessories & Modules
- Basic Humidifier
A washing bottle with a frit that humidifies gas passively before it reaches the AFM sample space. Gas is fed from a cylinder or wall connection through a flow rate valve, and the humidity reached is set by flow rate alone rather than by active control.
- Acoustic Enclosure AE550
A large acoustic enclosure for standard Nanosurf AFM systems and small custom stage systems. It uses a multilayer acoustic isolation sandwich with an acoustically isolating cable feed-through, and can be upgraded with a temperature control system.
- Cantislide Cantilever Holder with/without Alignment Chip
A cantilever holder for the FlexAFM and CoreAFM, supplied with or without an alignment chip. The alignment chip version places the cantilever in a fixed position so the laser does not have to be realigned after an exchange, which saves time between samples.
