Basic Humidifier
Brand: Nanosurf | Category: Nanotechnology

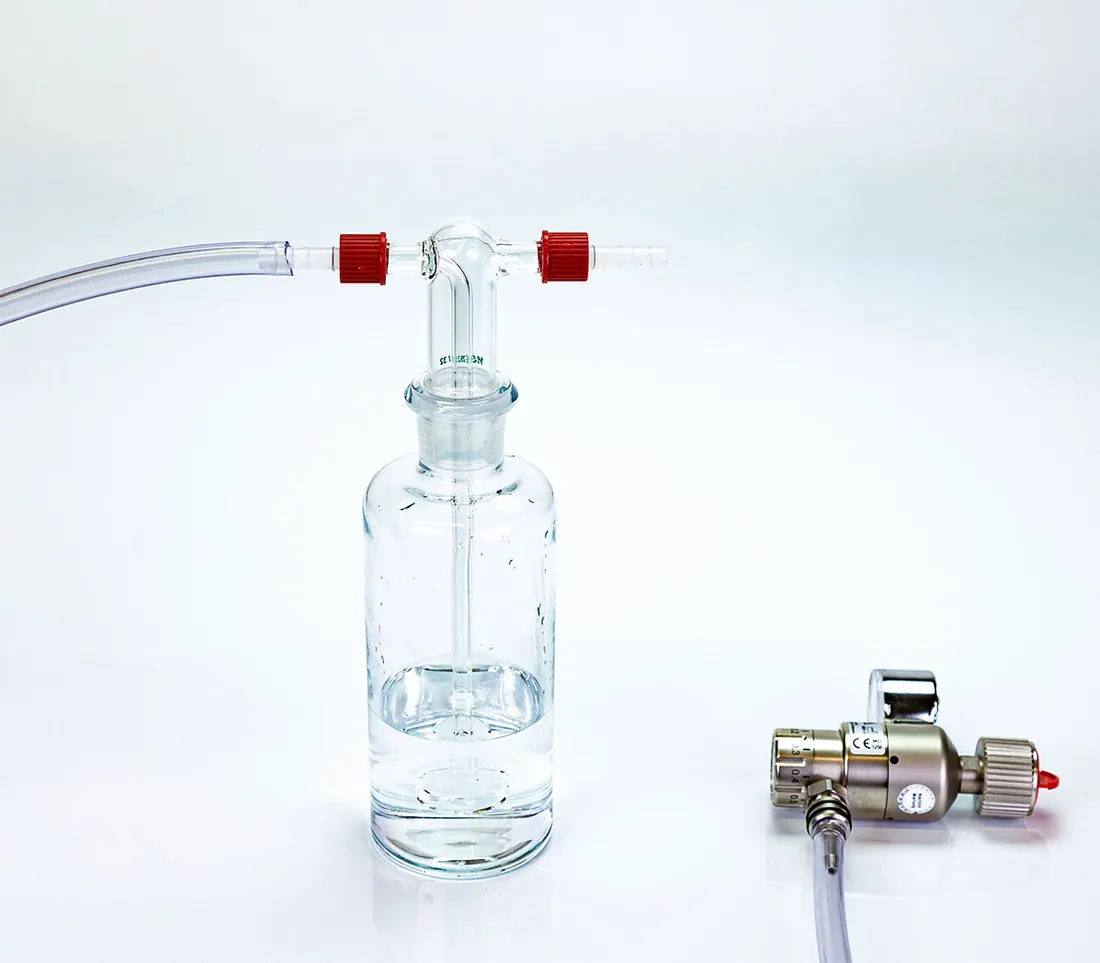

A washing bottle with a frit that humidifies gas passively before it reaches the AFM sample space. Gas is fed from a cylinder or wall connection through a flow rate valve, and the humidity reached is set by flow rate alone rather than by active control.
Technical Specifications
| Parameter | Value |
|---|---|
| Flow rate | 6 to 60 l/h |
| Humidity | ambient to 96 per cent, passively controlled |
| Bottle volume | 500 ml |
| Weight | 1.5 kg |
| Compatibility | DriveAFM, FlexAFM, CoreAFM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
