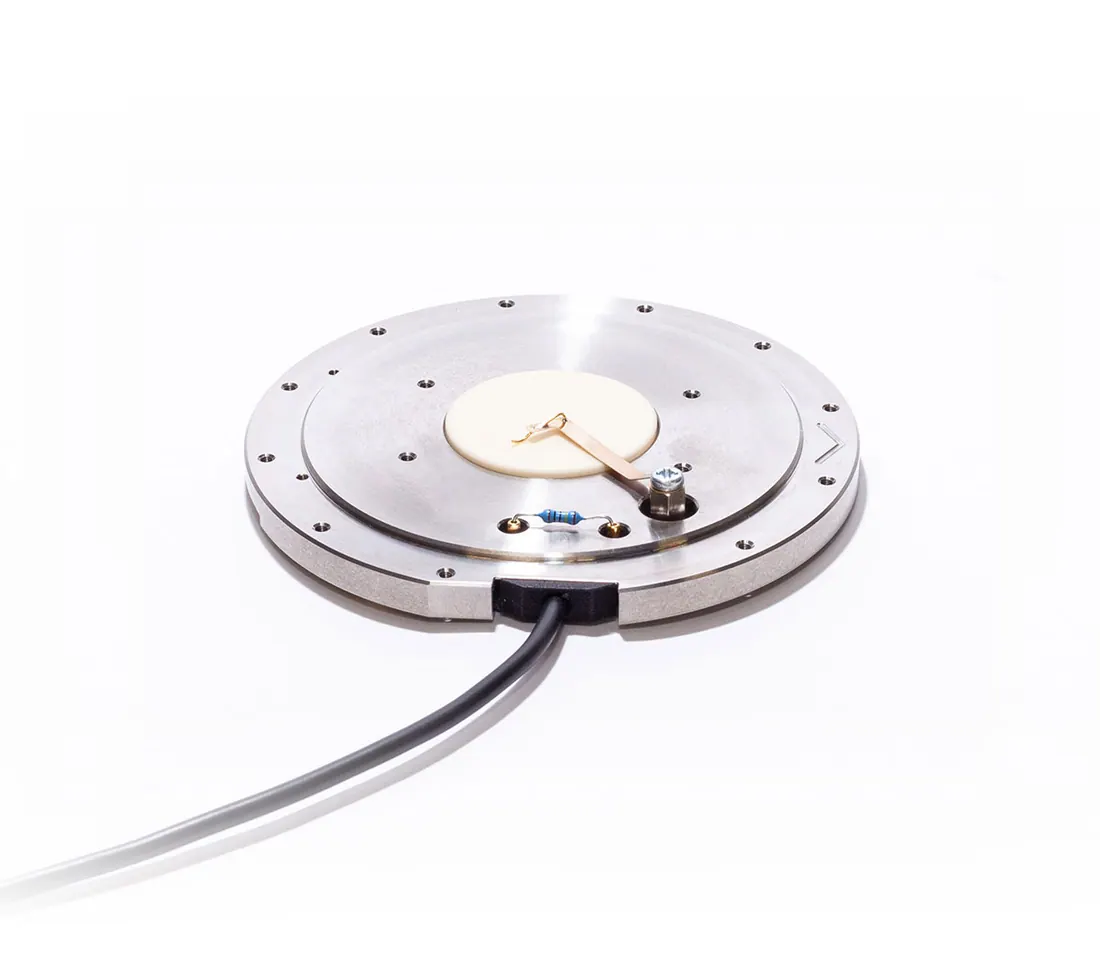

Conducting Atomic Force Microscopy (C-AFM) Sample Holder
Brand: Nanosurf | Category: Nanotechnology
A sample holder with a current amplifier built into it, for conductive atomic force microscopy. It reads tip currents over a fixed range of plus or minus 25 nA and can be combined with the Environmental Option for measurement under controlled atmosphere.
Technical Specifications
| Parameter | Value |
|---|---|
| Current range | plus or minus 25 nA, fixed |
| Current-to-voltage conversion | 4x10^8 V/A |
| Current noise | 3 pA at 3 kHz bandwidth |
| Dimensions | 100 mm diameter x 8 mm |
| Weight | 0.5 kg |
| Compatibility | DriveAFM, FlexAFM, CoreAFM |
