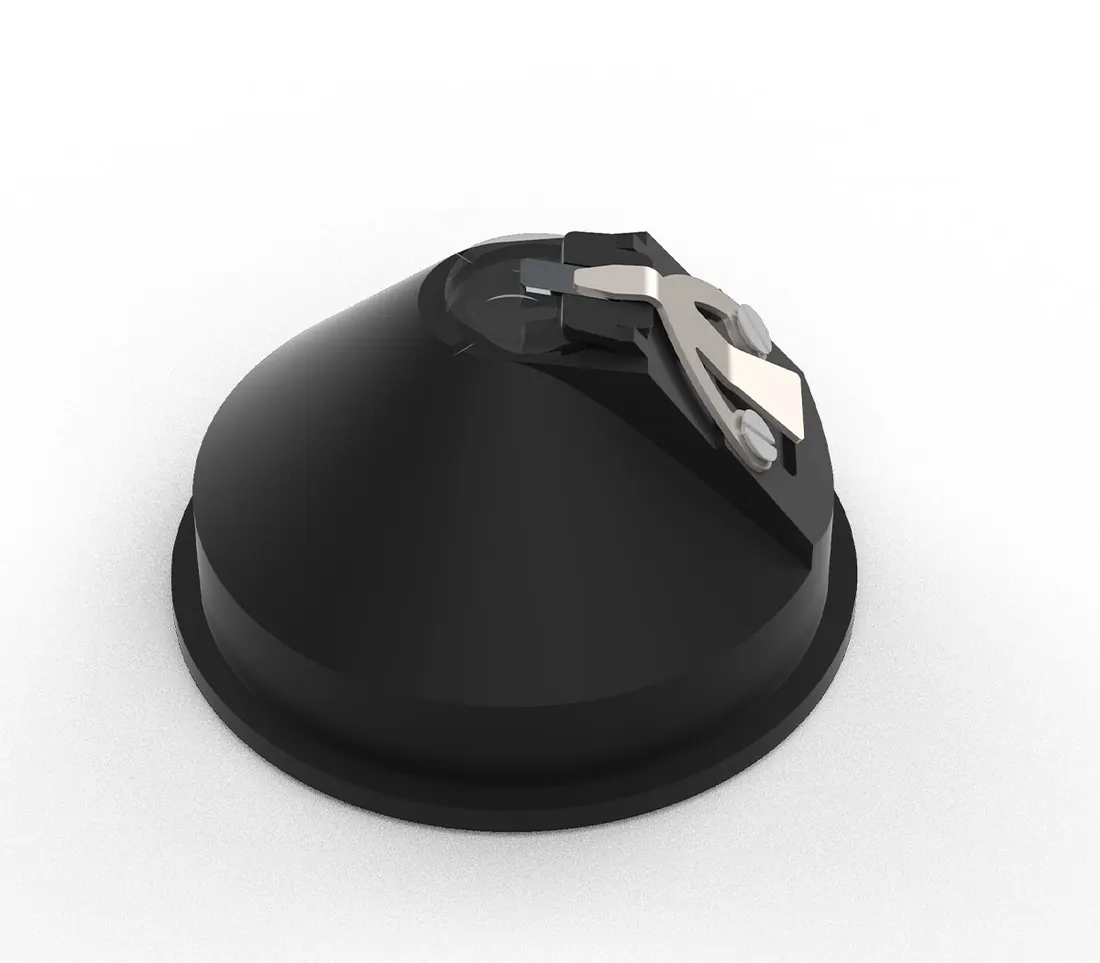

Conical Cantilever Holder
Brand: Nanosurf | Category: Nanotechnology
A conical cantilever holder for the DriveAFM, made from ceramic or PEEK. Conductive, non-conductive and HV-PFM versions are offered, the last giving direct electrical contact to the tip for piezoelectric force microscopy at raised voltage.
Technical Specifications
| Parameter | Value |
|---|---|
| Options | conductive, non-conductive, HV-PFM with direct electrical contact to the tip |
| Materials | ceramic or PEEK |
| Dimensions | 14.5 mm diameter x 8.4 mm |
| Weight | 1.5 g |
| Compatibility | DriveAFM |
