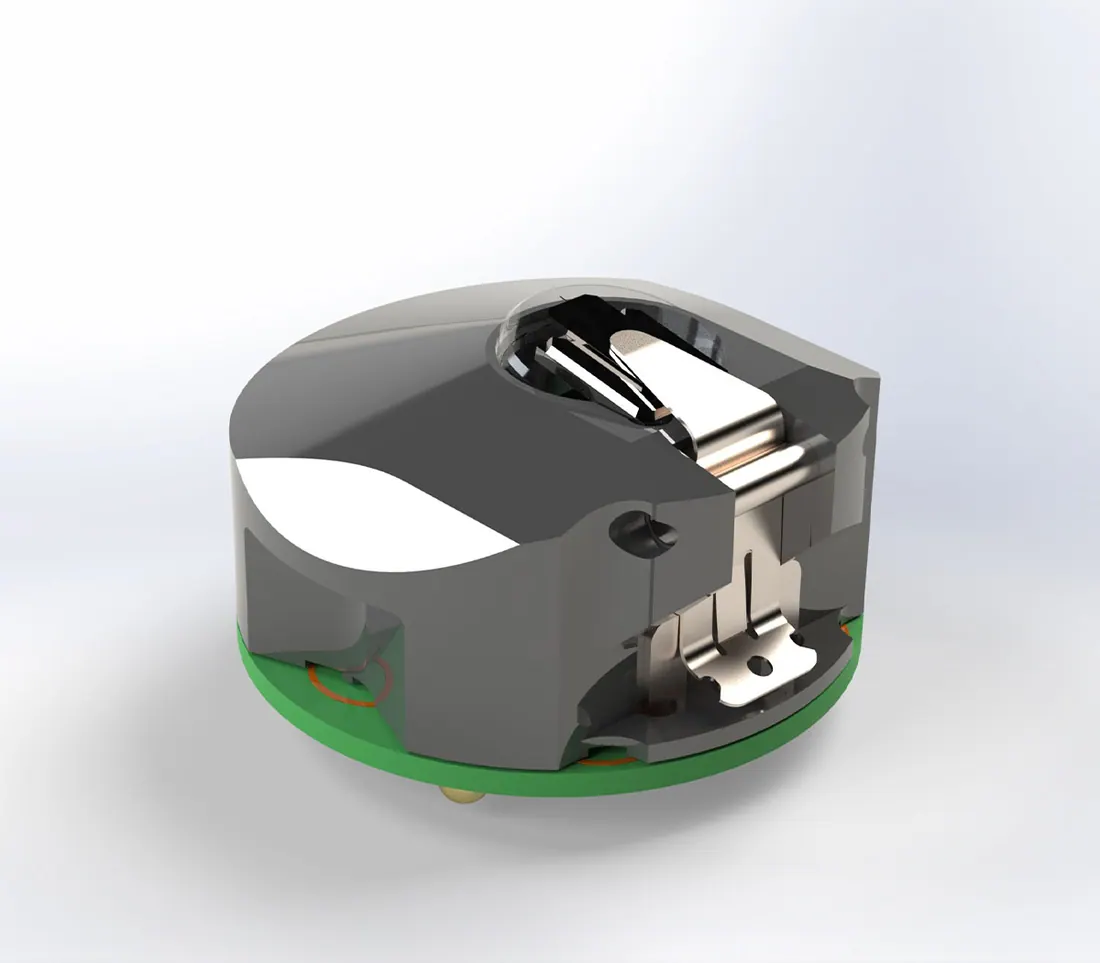

Cantislide Cantilever Holder with/without Alignment Chip
Brand: Nanosurf | Category: Nanotechnology
A cantilever holder for the FlexAFM and CoreAFM, supplied with or without an alignment chip. The alignment chip version places the cantilever in a fixed position so the laser does not have to be realigned after an exchange, which saves time between samples.
Technical Specifications
| Parameter | Value |
|---|---|
| Modifications | with alignment chip, or without for 0.3 and 0.6 mm substrates |
| Options | conductive, non-conductive, HV-PFM with direct electrical contact to the tip |
| Dimensions | 14.5 mm diameter x 8.4 mm |
| Weight | 1.45 g |
| Compatibility | FlexAFM, CoreAFM |
