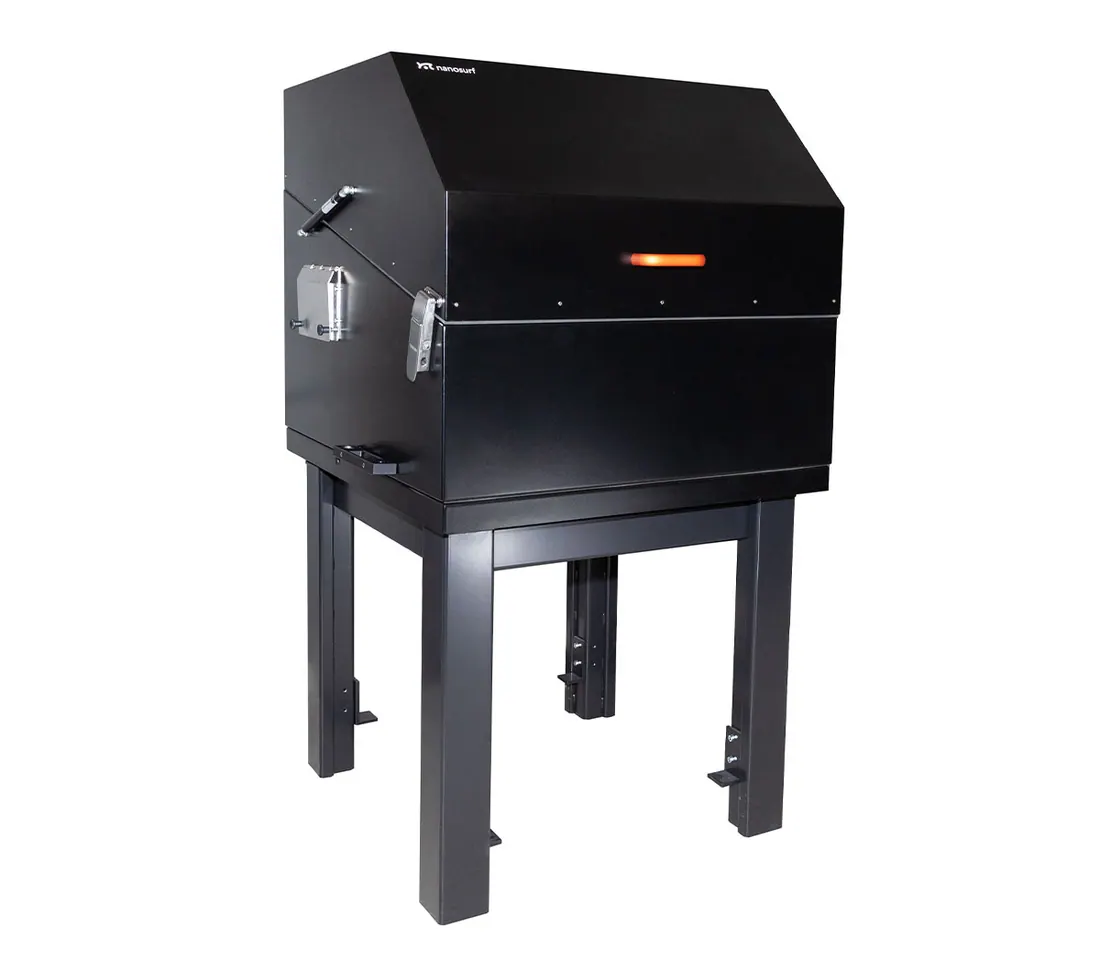

Acoustic Enclosure AE550
Brand: Nanosurf | Category: Nanotechnology
A large acoustic enclosure for standard Nanosurf AFM systems and small custom stage systems. It uses a multilayer acoustic isolation sandwich with an acoustically isolating cable feed-through, and can be upgraded with a temperature control system.
Technical Specifications
| Parameter | Value |
|---|---|
| Sound suppression | greater than 40 dB above 300 Hz |
| Outer dimensions | 900 x 1520 mm closed, 2010 mm open, x 1030 mm |
| Inner dimensions | 640 x 540 x 720 mm |
| Weight | about 220 kg |
| Options | temperature control |
| Compatibility | CoreAFM, Isostage 300 based FlexAFM or DriveAFM |
