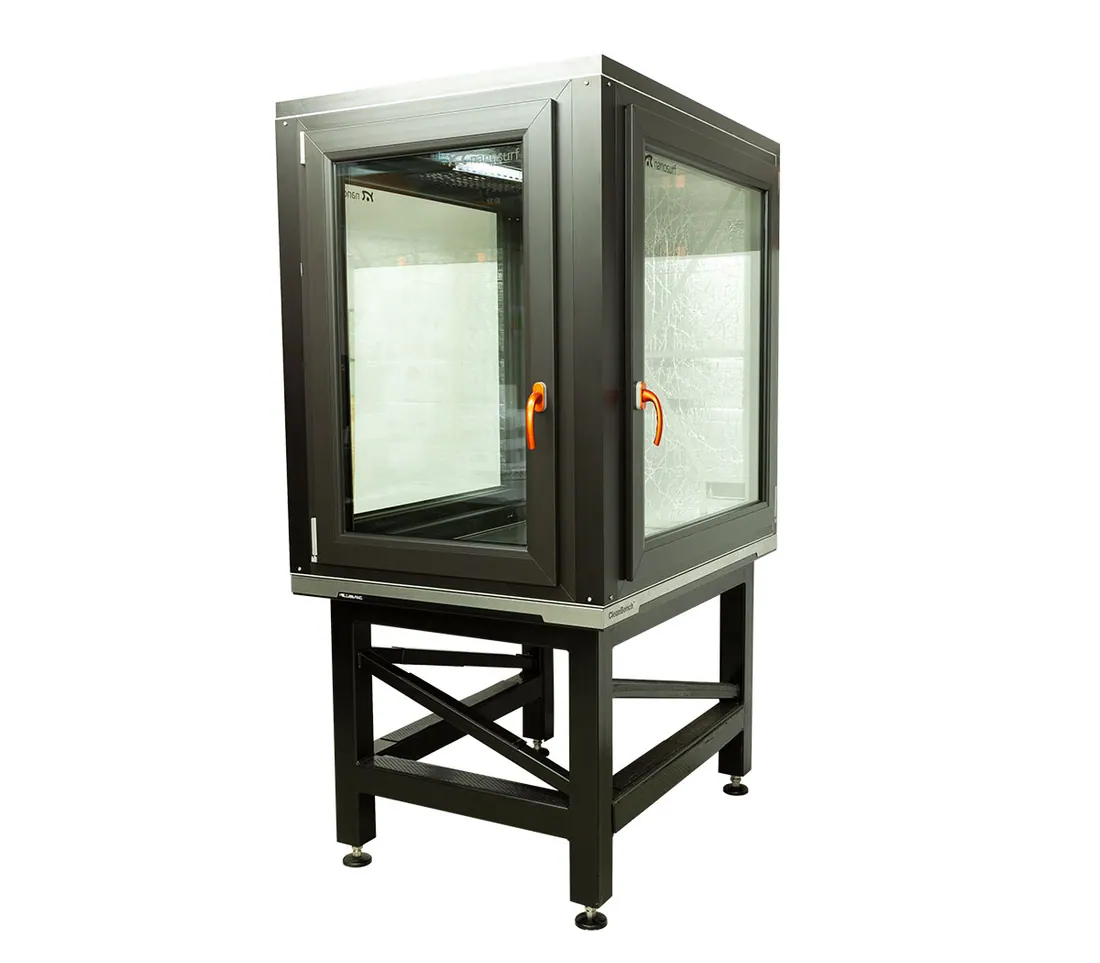

Acoustic Enclosure AE1100
Brand: Nanosurf | Category: Nanotechnology
A large acoustic enclosure sized to take an AFM together with a standard inverted optical microscope. Three window elements of acoustic isolation glass give access from three sides, while the back and top panels use an acoustic isolation sandwich.
Technical Specifications
| Parameter | Value |
|---|---|
| Sound suppression | greater than 30 dB above 200 Hz |
| Outer dimensions | 1070 x 1980 x 1300 mm including table |
| Inner dimensions | 750 x 1105 x 1055 mm |
| Weight | about 470 kg including table |
| Specification | Optimised for the Rigid Steel Table 900 mm x 1200 mm |
| Specification | Upgradeable with a temperature control system |
