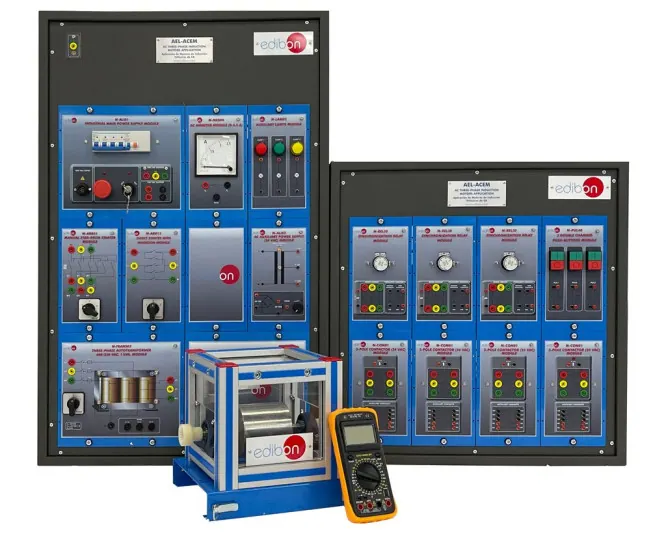

AEL-ACEM: AC Three-Phase Induction Motors Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A base rack of power supplies, push buttons, three-phase autotransformer, AC ammeter, circuit breakers, timers and flywheel, completed by motor options. Each option adds a different machine with its own modules so a range of induction motor manoeuvres can be wired.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1380 x 840 x 2010 mm |
| Weight | 80 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Voltage supply (single-phase) | 230 VAC, 1PH + N |
