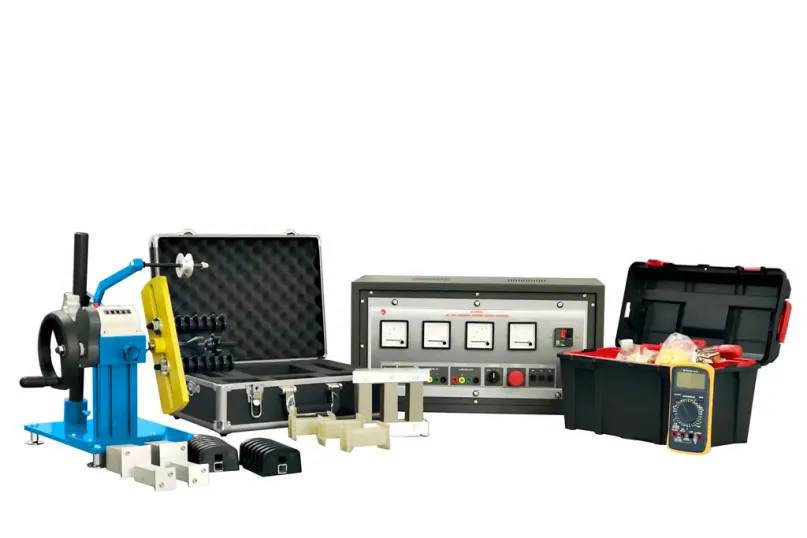

TPTC: Three-Phase Transformer Construction Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A training unit for building and commissioning three-phase transformers. Students wind the coils with a hand winder, assemble the core, connect the windings and then measure the finished machine before putting it into service.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 640 x 320 x 670 mm |
| Weight | 35 Kg approx |
| Input voltage | 400 VAC, three phases and neutral |
| Rated current | 2 A |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
