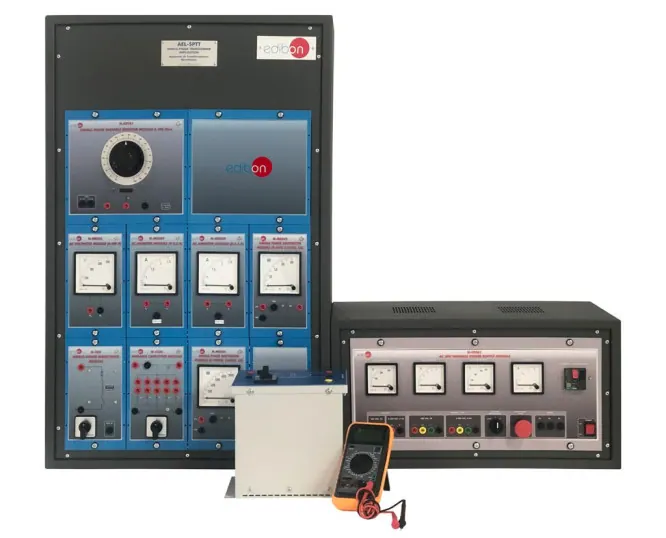

AEL-SPTT: Single-Phase Transformer Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A panel based application for single-phase transformer testing. Students carry out the open circuit and short circuit tests, take the load characteristic and determine the equivalent circuit parameters, wiring the measuring instruments themselves on the modular rack.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 1500 x 300 x 1400 mm |
| Weight | 50 Kg approx |
| Supply voltage | 3 x 400 VAC + N |
| Input voltage | 400 VAC |
