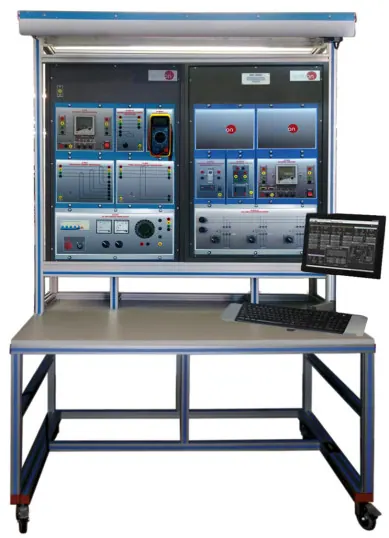

AEL-CTFP: Current Transformer Fundaments Application for Protections Devices
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Shows the functions of current transformers in protection schemes and the parameters that decide which unit is suitable. Students connect the transformer to protection devices and measure the secondary current against the primary quantity.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1380 x 840 x 2010 mm |
| Weight | 60 Kg approx |
| Input current | 2,5 A |
| Output current | 1 A |
