ERP: Protection Relays Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment

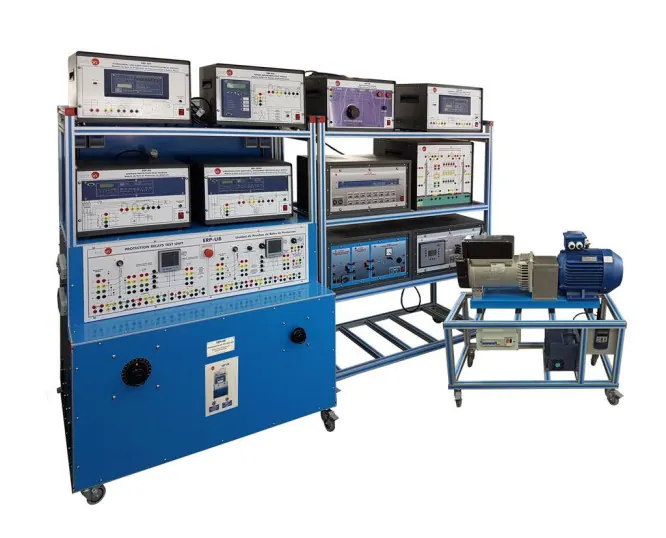

A protection relay application reproducing the arrangement used in real electrical substations. Students set the relay characteristics, apply test quantities and observe the tripping behaviour, gaining experience with substation protection practice.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 1250 x 800 x 2000 mm |
| Weight | 400 kg |
| Accuracy | +- 5% |
| Current | 5 A (AC) |
