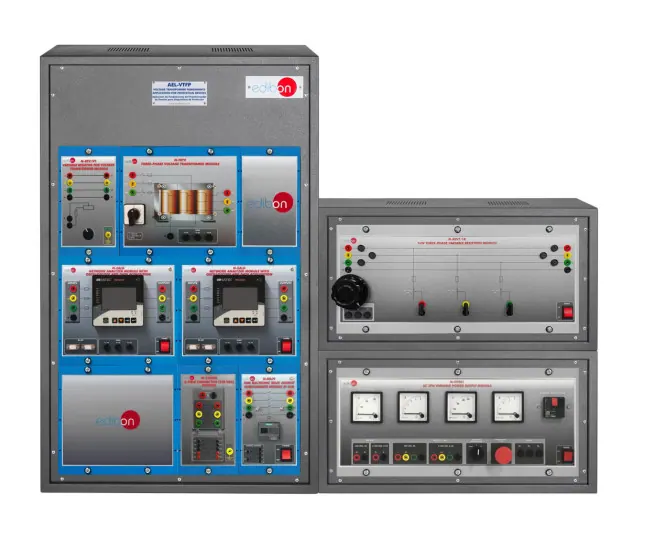

AEL-VTFP: Voltage Transformer Fundaments Application for Protection Devices
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Shows what voltage transformers do in a protection scheme and which parameters govern the choice of a suitable unit. Students wire the transformer to the protection devices and measure the secondary quantities under different primary conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 1600 x 550 x 2000 mm |
| Weight | 60 kg approx |
| Nominal power | 20 W |
| Input voltage max | 3 x 230 VAC |
