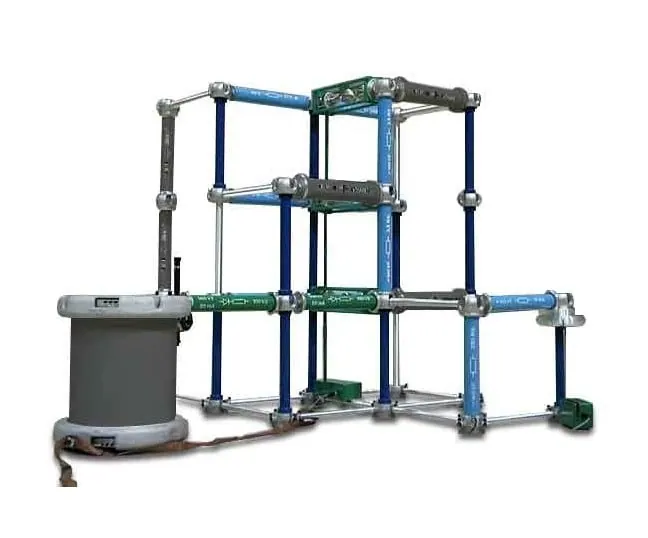

HVLS: High Voltage Laboratory System
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A high voltage laboratory built from a base unit and optional test kits for AC, DC and impulse voltage testing. The kits supply the test transformer, connecting bars, electrode sets and measuring capacitors needed to assemble each test configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 5000 x 2500 x 4000 mm |
| Weight | 600 Kg approx |
| Nominal Power | 5 kVA, 10kVA for 60 min |
| Frequency | 50/60 Hz |
