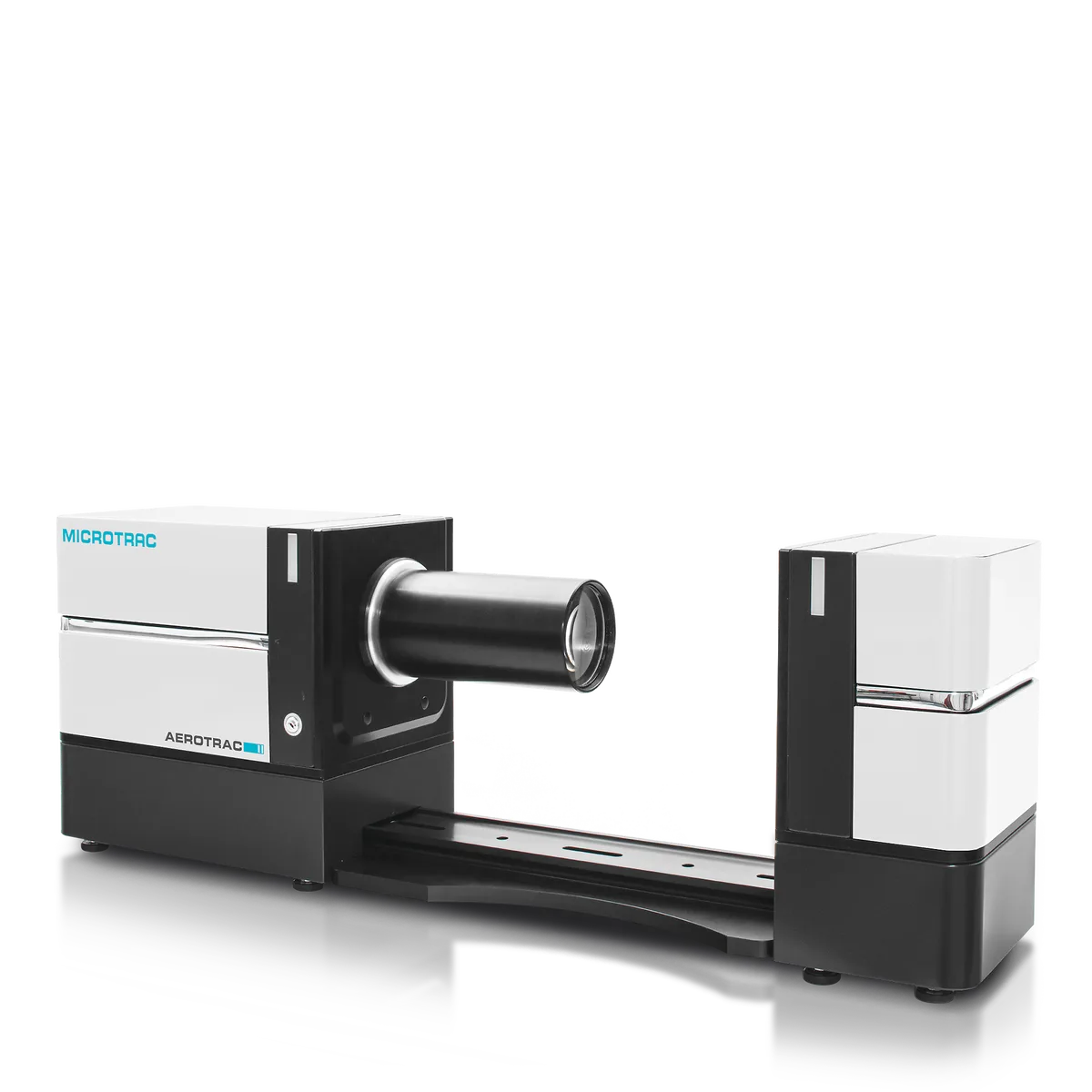

AEROTRAC II: Spray Particle and Droplet Size Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Laser diffraction analyser configured for airborne particles and droplets, measuring sprays, mists and atomised liquids in flight. Three interchangeable lenses cover 0.5 µm to 2000 µm, and spray measurements can be as short as 0.02 milliseconds to capture a single pulse.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measuring range | F100 lens: 0.5 to 350 µm ; F300lens: 1.4 to 1000 µm ; F600 lens: 2.8 to 2000 µm |
| Detector | 32-element ring detector (with automatic optical axis adjustment function |
| Measuring time | Spray measurement: 0.02 to 500 msec ; Continous measurement: 1 to 600 sec |
| Number of measurements | Spray measurement: 1 to 100 times ; Continous measurement: 1 to 9,999 times |
| Sample Cell | Material: Tempax glass (with coating) ; Capacity: 5 to 7 ml |
| Power requirements | 85 to 264 VAC, 47 to 63 hz |
| Dimensions (W x H x D) | Light emission module: 170 × 230 × 240 mm ; Detection module: 595 × 230 × 240 mm ; For connected modules (option): 1000 × 230 × 340 mm, 27 kg |
| Weight | Light emission module: 5.5 kg ; Detection module: 11.5 kg (with F300 lens attached) ; For connected modules (option): 27 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
