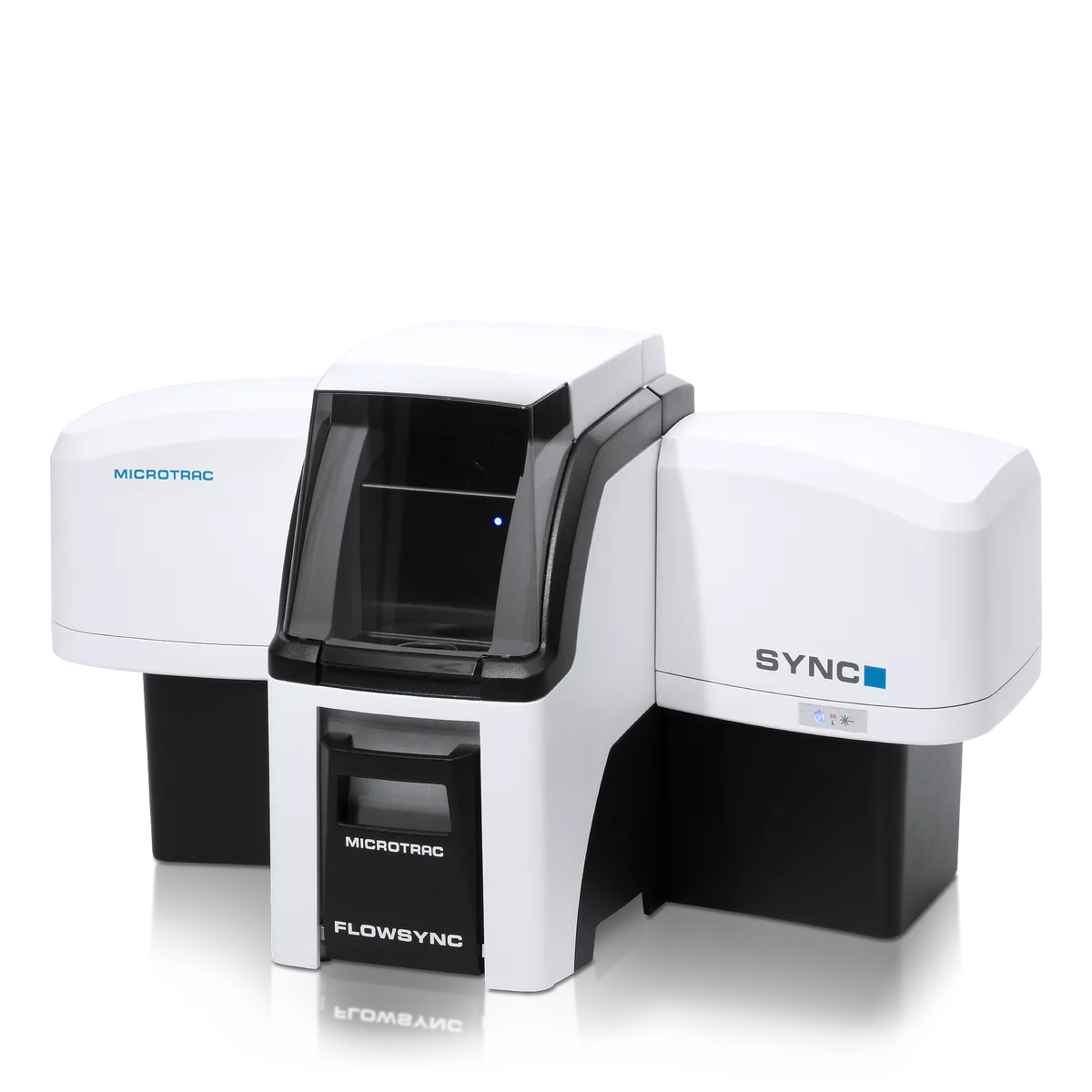

SYNC: Combined Laser Diffraction and Dynamic Image Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Analyser that runs laser diffraction and dynamic image analysis on the same sample stream at the same time, so size distribution and shape data come from one measurement rather than two instruments. It covers 0.01 to 4000 µm and works to ISO 13320 and ISO 13322-2 together.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measuring range | SYNC GO: 0.1 - 2000 µm ; SYNC PLUS: 0.02 - 4000 µm ; SYNC PRO: 0.01 - 4000 µm |
| Laser power | Red laser 0.35 to 2 mW nominal ; Blue laser 4-8 mW nominal |
| Detection system | Two fixed photoelectric detectors with logarithmically spaced segments are placed at correct angles for optimal scattered light detection from 0 to 165 degrees using 151 detector segments. |
| Measuring time | ~ 10 to 30 seconds |
| Power requirements | AC input: 90 - 264 VAC, 47 - 63 Hz, single phase |
| Power consumption | 25 W nominal, 50 W max., depending on options installed |
| Dimensions (W x H x D) | ~ 820 x 460 x 500 mm (32.3 x 18.1 x 19.7 in) |
| Weight (Measuring unit) | FLOWSYNC: 19.5kg (43lbs) ; TURBOSYNC: 13.6kg (30lbs) ; SYNC: 23.6kg (50.8lbs) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
