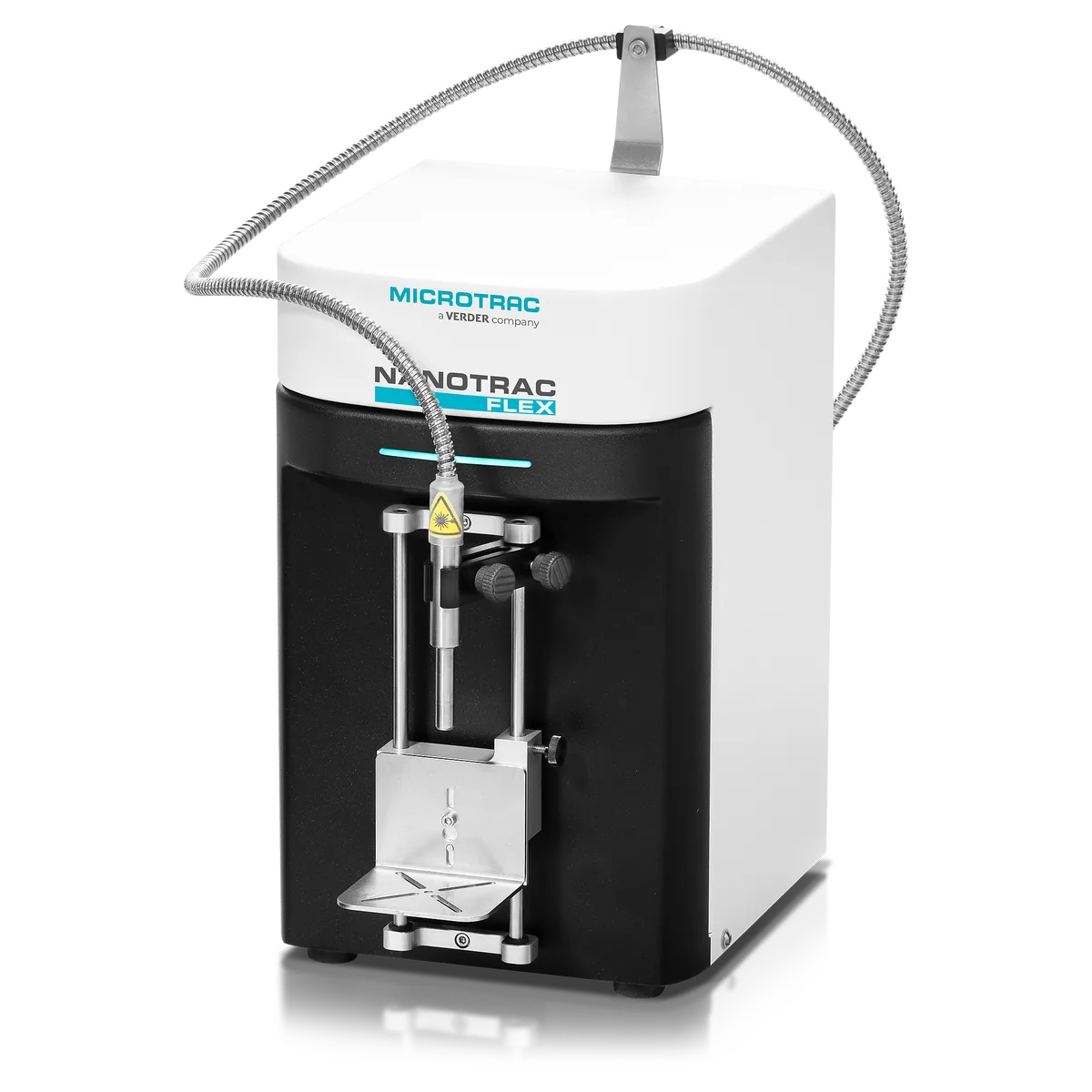

NANOTRAC FLEX: Nanoparticle Size Analyser
Brand: Microtrac MRB | Category: Scientific & Laboratory Equipment
Dynamic light scattering analyser using an external probe rather than a cuvette, so measurements can be taken in situ in a reaction vessel or process line. It covers 0.3 nm to 10 µm and works at sample concentrations up to 40 per cent, which removes the dilution step that normally distorts a DLS result.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Measurement angle | 180° |
| Measuring range | 0.3 nm - 10 µm |
| Molecular weight range | 300 Da -> 20 x 10^6 Da |
| Temperature range | +4°C - +90°C |
| Sample volume size measurement | 2 µL - ∞ |
| Sample concentration | up to 40 % (sample dependent) |
| Dimensions (W x H x D) | 180 x 300 x 260 mm |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Microtrac MRB equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
