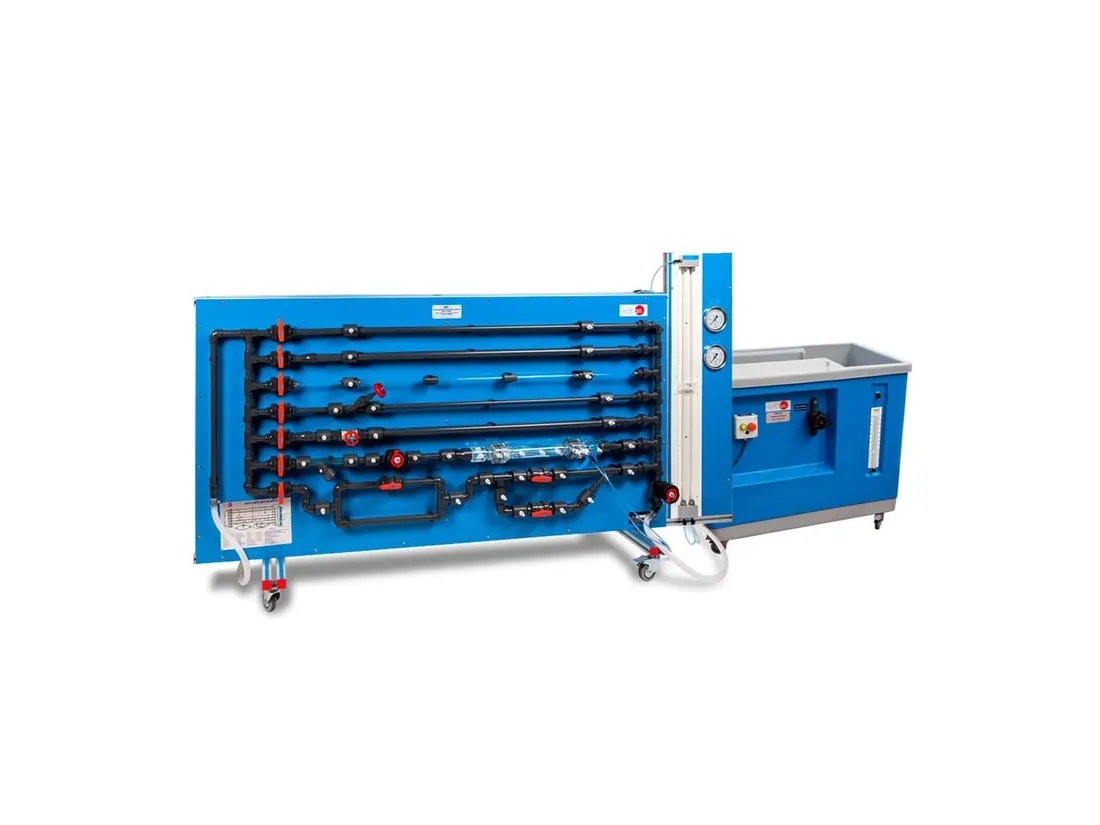

AFT: Fluid Friction in Pipes Unit, with Hydraulics Bench (FME00)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
AFT is used to measure friction losses in pipes and fittings. Pipes of different diameter and roughness, bends, valves and sudden changes of section are connected in parallel circuits with pressure tappings. Computer controlled and standalone versions, AFTC and AFT/P, are also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 3550 x 850 x 1380 mm approx |
| Weight | 350 kg approx |
| Rough pipe (PVC). External diameter | 25 mm and internal diameter: 17 mm |
| Rough pipe (PVC). External diameter | 32 mm and internal diameter: 23 mm |
| Smooth pipe (PMMA). External diameter | 10 mm and internal diameter: 6.5 mm |
| Smooth pipe (PVC). External diameter | 20 mm and internal diameter: 16.5 mm |
