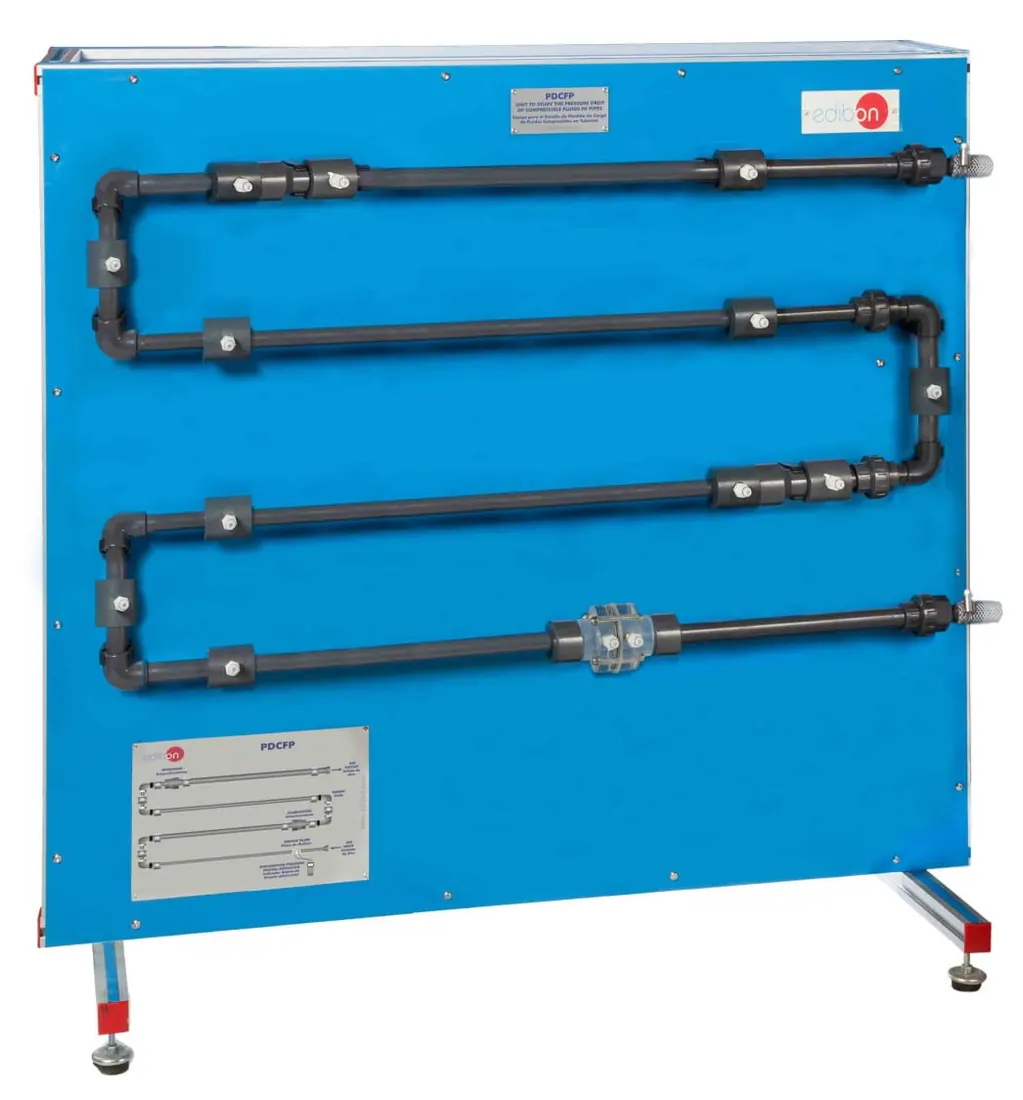

PDCFP: Unit to Study the Pressure Drop of Compressible Fluids in Pipes
Brand: EDIBON | Category: Scientific & Laboratory Equipment
PDCFP is used to measure pressure drop when a compressible fluid flows in a pipe. Air passes through pipes and fittings of different size while pressure, temperature and flow rate are recorded, showing how compressibility affects the loss.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1450 x 1450 x 1000 mm approx |
| Weight | 30 Kg approx |
| Test pipes of different diameters and lengths. External diameter | 10, 15 and 25 mm. Length: 1000 and 300 mm approx |
