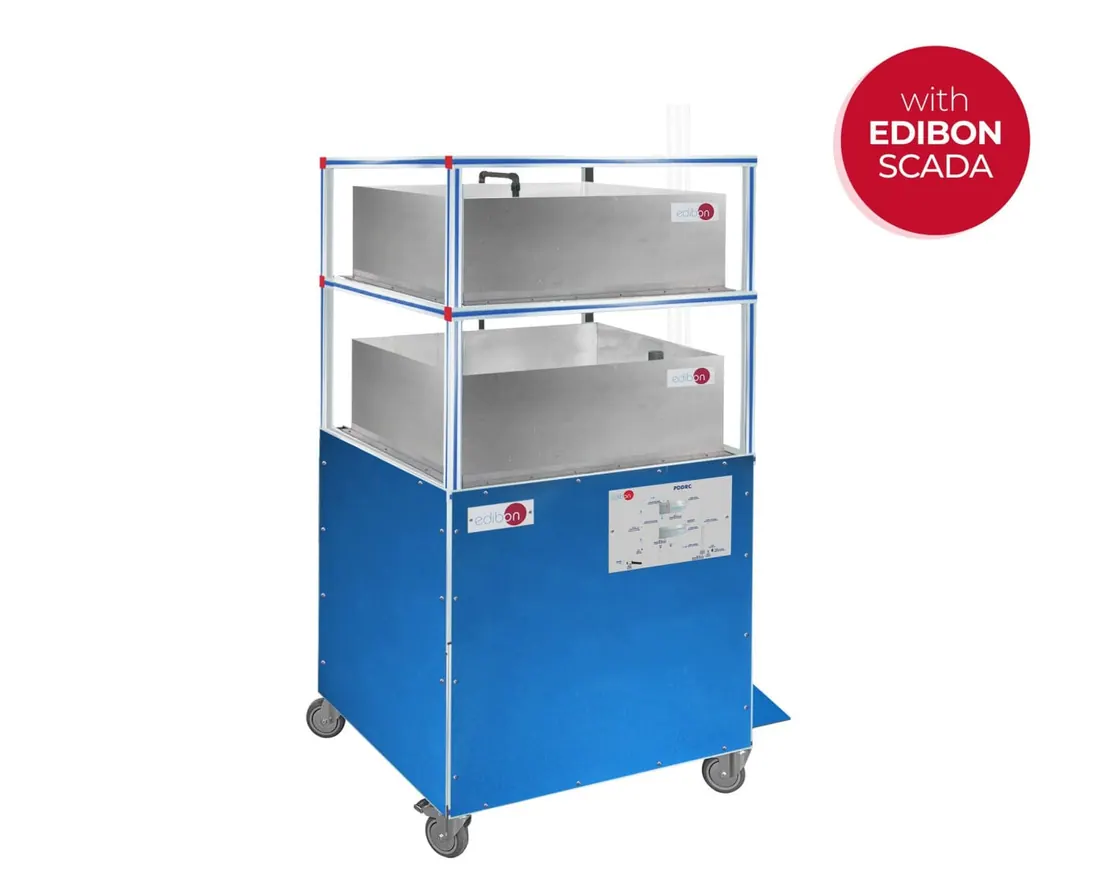

PDDRC: Computer Controlled Unit for Transient Drainage Processes in Storage Reservoirs
Brand: EDIBON | Category: Scientific & Laboratory Equipment
PDDRC is a computer controlled unit for studying the unsteady emptying of tanks. Level and flow are logged as a reservoir drains through orifices and pipes of different size, so the discharge time can be compared with theory.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1300 x 1300 x 2100 mm approx |
| Weight | 135 kg approx |
| Upper reservoir dimensions | 1000 x 1000 x 350 mm |
| Lower reservoir dimensions | 1000 x 1000 x 350 mm |
| Surge chamber inner diameter | 64 mm |
| Surge chamber height | 2000 mm |
