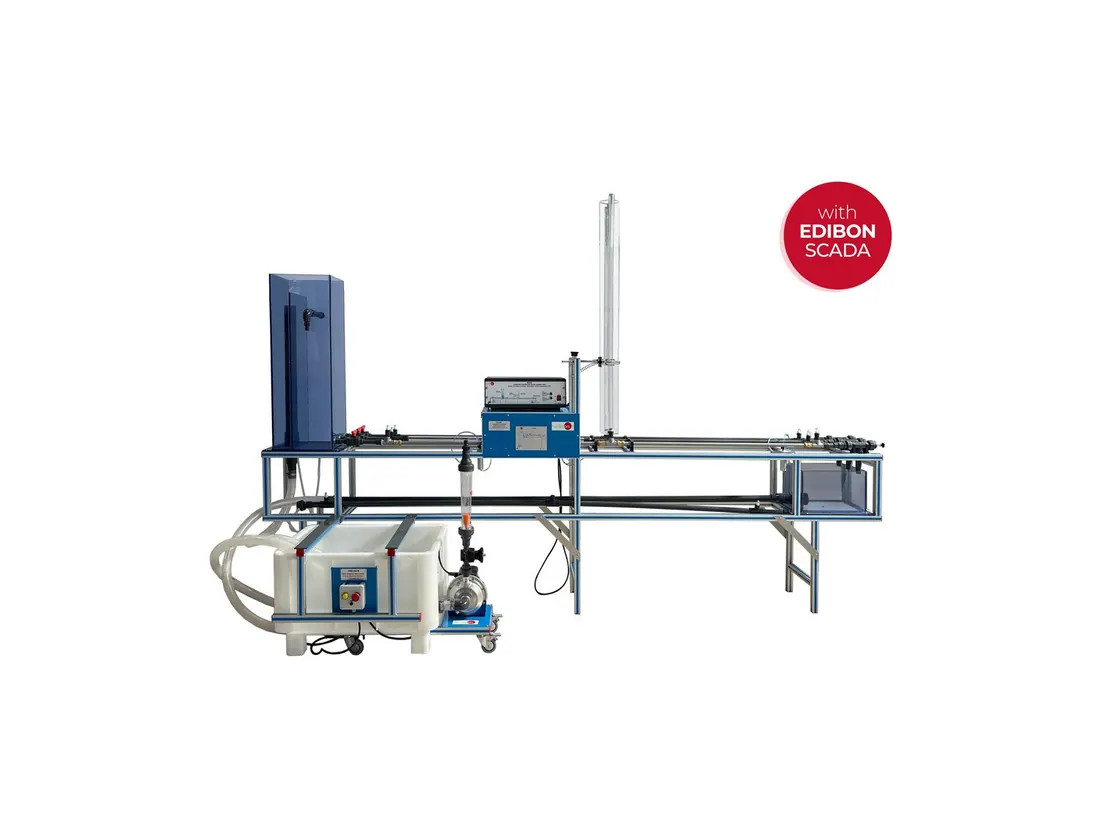

EGAC: Computer Controlled Water Hammer Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
EGAC is a computer controlled unit for studying pressure transients in pipelines. A fast acting valve closes while pressure is logged at high speed, so the surge magnitude, the wave speed and the effect of an air vessel can be examined.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 3665 x 500 x 2200 mm approx |
| Weight | 100 Kg approx |
| Specification | Stainless steel (D=25 mm) |
| Specification | PVC (D=25 mm) and methacrylate (D=40 mm) |
| Specification | 0.37 kW, 30 to 80 l/min at 20.1 to 12.8 m |
| Centrifugal pump tank capacity | 140 l approx |
